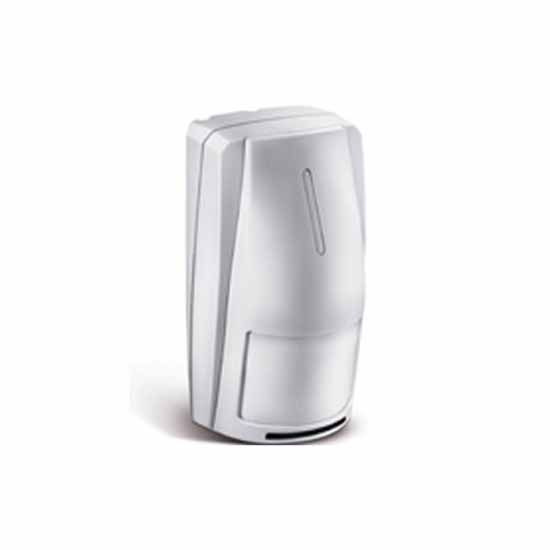

ELKRON 80IR3D00113 IR15 - Indoor passive infrared detector
- MT Code
- ELK_80IR3D00113
- Manufacturer Code
- 80IR3D00113
- Brand
- ELKRON
Description
Passive infrared digital volumetric detector (IRP) Two selectable sensitivity levels (H/L) Max. range 15 m Opening angle 90° Fresnel lens 18 beams on 4 planes + low proximity beam Wall or corner fixing Joint for wall or ceiling fixing (optional) IMQ EN50131 grade 2 certified Power supply: 12V+/-3V Max absorption: 17 mA Stand absorption By: 13 mA Alarm time 3 sec Opto Relay: 100mA / 24V Tamper: 100mA /30V Working temperature: -10°C/+55°C Ambient humidity: 95% Dimensions (W x H x D): 61.5 x 75 x 47.5mm
Data Sheet
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 80IR3D00113 | |
| Brand | ELKRON | |
| Alimentazione | 12V DC |
