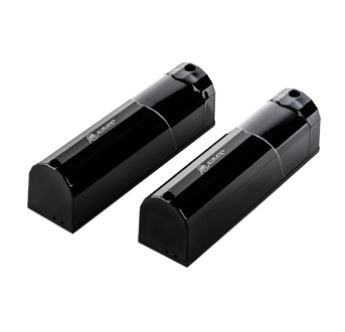

ALLMATIC 12005901 IRIS modulated adjustable infrared photocell consisting of transmitter and receiver

At the forefront: The photocell is housed on a rotating support equipped with a high-performance lens designed to optimize the efficiency of the beam in any direction. The rotating support is locked in the desired position thanks to a resistant rotation block with screw clamping (removable with a screwdriver if necessary). The successful alignment is signaled by an LED on board the

Fresnel-type high-performance optics are easily adjustable on rubbed and self-locking joints both horizontally, being able to rotate 180° (± 90°), and vertically with a possible rotation of ± 10°. The optics are completely independent of the electronic board, this makes it much easier to orient the wiring done

Double relay equipment with series exchanges, the NC contact and the phototest function make it compliant with category 3 standards of UNI EN ISO 13849-1 (update of EN 954-1). Possibility to connect up to 8 pairs of photocells synchronizing the transmission (multiplexed system) without interference. The selection is made using a 4-way dip-switch placed on both the transmitter and the receiver.

IR transmission with advanced digital protocol that guarantees maximum efficiency, immunity to disturbances and reduced consumption. Reinforced power supply to tolerate voltages up to 35Vdc or
