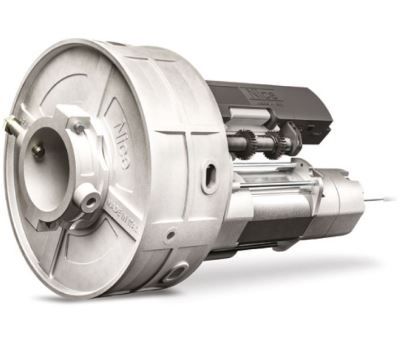

NICE RN2480 Irreversible, with brake and release device, with lifting force up to 360 kg

Irreversible, with brake and release device, with lifting force up to 360 kg

Easy to program: Simple adjustment of the mechanical limit switches thanks to the new white tab which allows you to easily disengage the functional wheels for adjusting the opening and closing positions of the shutter.

Easy to install: A few simple steps to effectively install the gearmotor on the spring shaft. Furthermore, thanks to the available crown adapters and spring shaft adapters, the product lends itself to different installation needs.

Easy to use: Easy to use release system to lock and unlock the shutter from the ground (7 meter long release cable for dual motor models, 5 meters for single motor model)

Safe: All models in the range are equipped with an electric brake. In the event that there is a blackout and the shutter is open, there is no risk of falling.

Versatile: Thanks to the new mechanical limit switch system, the automation can be installed on shutters up to 7 meters high.

TECHNICAL FEATURES:
Power supply (Vac 50 Hz): 230
Absorption (A): 5.4
Power (W): 1,260
Speed ​​(rpm): 9
Torque (Nm): 400
Continuous operation time (min): 4
Limit switch (m): 7
Shaft diameter (mm): 76
Shaft adapters: -
Crown diameter (mm): 240
Crown adapters: -
Electro-brake: S
Release cable (m): 7
Power cable (length in m): 4x1 mm2 (6 m)
Degree of protection (IP): 20
Operating temp. (C Min/Max): -20 -: +55
Dimensions (mm): 240x370
Weight (kg): 17
