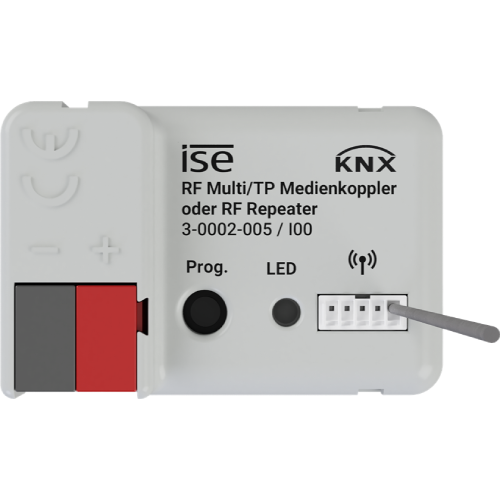

ISE 3-0002-005 KNX RF multi/TP media coupler or RF repeater

KNX RF Multi/TP Media Coupler acts as an interface between a wired KNX TP installation and a KNX RF environment.

The device allows both the expansion of existing systems and the targeted integration into new buildings, unifying different technologies such as KNX RF Ready and KNX RF Multi.

Key features include:

• Security Proxy to connect KNX devices with and without Secure in a single installation
.
• Ready to Slow Proxy to connect KNX RF Ready devices with KNX RF Multi.
• Line and segment coupler function starting with ETS6.
• Repeater function to extend the range of the radio signal for both KNX RF Multi and KNX RF Ready.
• Support for filtering and blocking group addresses. Support for long frames.
• Fast and slow communication interlocked in a single device.
• Blocking RF programming to ensure safe operation in places open to the public such as hotels.
• Full support for the KNX Secure standard for maximum data security
.
• Integrated LED with a wide range of functions to facilitate installation and diagnostics.
• Upgradable via KNX TP and KNX RF to keep the system always up to date with minimum effort
