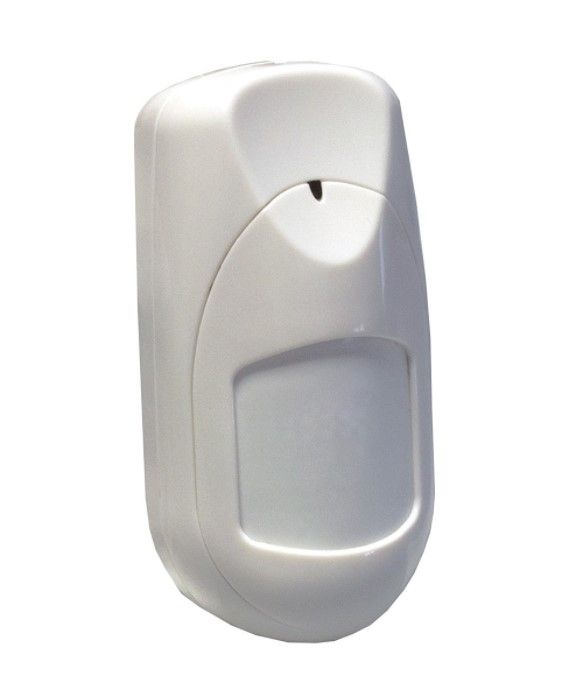

RISCO RWX95086800A iWave - Bidirectional Radio PIR Detector. Frequency 868 MHz.

iWave PIR, also available in an animal-immune (PET) version, is a bidirectional infrared radio detector simple to install with a wall mount, ideal for residential and commercial installations. The PET version allows the discrimination of pets up to 36 Kg. Bidirectional radio technology guarantees greater security, remote control and diagnostics and reduces radio channel congestion.

Features

• Cover 15mx15m
• Installation height: from 2.2 m to 2.5 m
.
• Digital processing of the Tamper anti-removal signal
• that can also be used for angled installations. Real temperature
• compensation
.
• Optical sensor protection to prevent false alarms due to insects.
• Pigmented lenses for protection against white lights to avoid false alarms.
• Tear-proof tamper.
• Filter: White light protection
• Dimensions: 132 mm x 67.5 mm x 56 mm
• RF immunity: Compliant with EN50130-4
• The two-way radio version guarantees greater security, remote control and diagnostics and reduces radio channel congestion
• Includes 2 long-lasting 3V lithium batteries
• Frequency: 868, 65MHz Operating temperature:
-10 degrees C to
• 40 degrees C Available in a Unidirectional Radio version PET model: 12mx12m coverage Animal discrimination up to
• 36 kg
with
• VPT (Variable Pet Threshold) technology
• Compatible with the RISCO system: Agility
• Product Code: RWX95P

Technical

• Cover 15mx15m
• Installation height: from 2.2
m to 2.5 m.
• Battery type: 2 x CR 123, 3V lithium battery included
• Dimensions: 132 mm x 67.5 mm x 56 mm
• RF immunity: Compliant with EN50130-4
• Frequency: 868, 65MHz Operating temperature:
• -10 degrees C to 40 degrees C
• Optional 12m curtain lenses with a 23m long range typical battery life: 3 years
