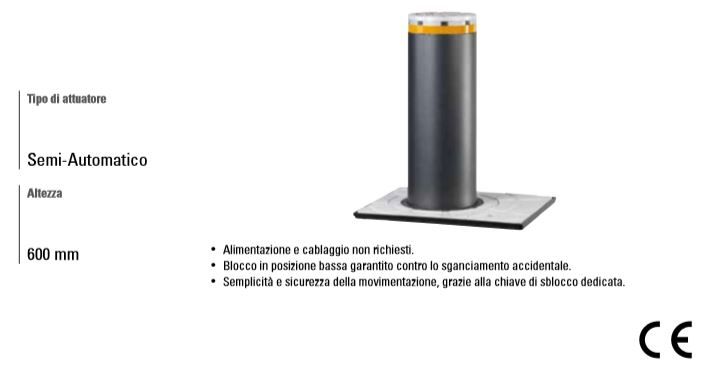

FAAC 116508 J200SA H600 Semiautomatic Retractable Bollard

J200SA H600 Semiautomatic Retractable Bollard

Retractable traffic bollard - Actuator type: Semi-Automatic Height: 600 mm

This traffic bollard solves traffic and/or parking control problems without the need for electricity (particularly suitable for historic centers and areas that are difficult to wire). In fact, thanks to the equipment of a gas actuator, the lifting takes place automatically by means of a key release.

The lowering is instead operated by pressing on the head of the bollard. Therefore, it does not require any electrical connection. - Power supply and wiring are not required. - Locking in a low position guaranteed against accidental release. - Simplified and safe handling, thanks to the dedicated unlock key. - Simplified installation, thanks to the self-supporting structure that does not require the use of a cockpit.

J200 SA is equipped with: - steel cylinder with cataphoresis treatment and dark gray metallic powder coating - support structure for cementing cataphoresis treatment (no need for wells) - Unlocking key (1 piece)

TECHNICAL CHARACTERISTICS: Actuator type: Single-acting gas actuator Cylinder height above ground: 600 mm Cylinder diameter: 200 mm Cylinder material type: S235JRG2 EN 10277 steel Cylinder treatment type: Cataphoresis and dark grey RAL 7021 metallic polyester powder coating Unlocking device: Keyed (supplied) Reflective band height: 25 mm Standard reflective band color: Orange Total weight: 82 Kg Underground structure dimensions (LxPxH): 400 x 500 x 800 mm Excavation dimensions (LxDxH): 700 x 700 x 1,100 mm
