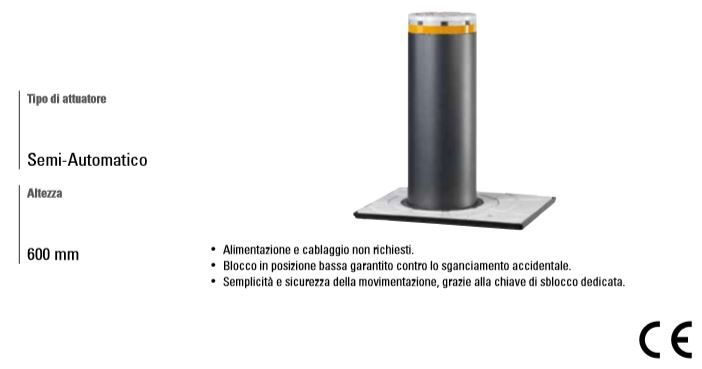

FAAC 116509 J200 SA H600 SATIN STAINLESS STEEL Retractable Bollard

J200 SA H600 SATIN STAINLESS STEEL Retractable Bollard

Actuator type: Semi-Automatic - Height: 600 mm - Power supply and wiring not required. - Locking in a low position guaranteed against accidental release. - Simplicity and safety of movement, thanks to the dedicated unlock key. - Simplified installation, thanks to the self-supporting structure that does not require the use of a cockpit. Packaging: AISI 316L stainless steel cylinder with satin treatment support structure to cement cataphoresis treatment (no need for the use of wells) Unlock key (1 piece)

TECHNICAL CHARACTERISTICS: Actuator type: Single-acting gas actuator Cylinder height above ground: 600 mm Cylinder diameter: 200 mm Cylinder material type: AISI 316L satin finish Cylinder treatment type: Satin finish Unlocking device: Keyed (supplied) Reflective band height: 25 mm Standard reflective band color: Orange Total weight: 82 Kg Underground structure dimensions (LxPxH): 400 x 500 x 800 mm Excavation dimensions (LxDxH): 700 x 700 x 1,100 mm Load class (EN 124): C250
