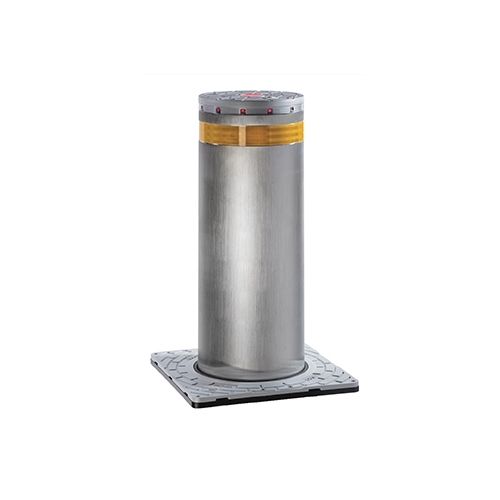

FAAC 116431 J275 2K20 HA H800 INOX Hidden Security Bollard

J275 2K20 HA H800 INOX Hidden Security Bollard

Type of actuator: Automatic Hydraulic - Height: 800 mm - Certified performance according to PAS 68 and IWA 14-1 standards: able to stop a 7,500 kg truck at 48 Km/h in a two-unit configuration - Guaranteed for high frequencies of use - Simplified maintenance (possible by a single person) - Hydraulic unit integrated into the bollard - “Gentle stop” function to ensure a delicate stop on the low window - Anti-tampering test and protected by an armored lock with a coded key to prevent unauthorized drops

Packaging: AISI 316L stainless steel cylinder with satin treatment Corona flasher with LED lights Acoustic motion alarm anti-tampering head with encrypted unlock key, to access the emergency manual lowering device hydraulic lock in the raised position (in case of blackout)

TECHNICAL CHARACTERISTICS: Actuator type: hydraulic actuator Cylinder height above ground: 800 mm Cylinder diameter: 275 mm Cylinder treatment type: AISI 316 brushed stainless steel Reflective band height: 55 mm Standard reflective band color: White Rise time: ~8 s Descent time: ~4.5 s Emergency descent device: YES (OPTIONAL) Emergency descent time: ~2 s Lifting obstacle detection device: YES (OPTIONAL) Unlocking device: yes Downhill slowdown: yes Network supply voltage: 220-240V — 50/60Hz Max power: 575 W Degree of protection for hydraulic unit: IP67 Type of use: Security use Crash resistance: 673,000 J in double units Cockpit weight: 100 kg Bollard weight: 170 kg Ambient operating temperature: -15°C/+55°C Ambient operating temperature with heater: -25°C/+55°C Load class (EN 124): C250 (25t)
