FAAC 116037 J275 HA_V2 H800 BRUSHED STAINLESS STEEL BOLLARD

J275 HA_V2 H800 BRUSHED STAINLESS STEEL BOLLARD

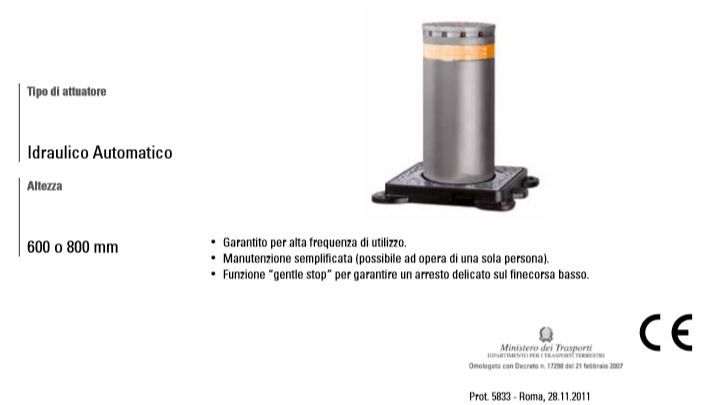

Actuator type: Hydraulic Automatic - Guaranteed for high frequency of use. - Simplified maintenance (possible by a single person). - “gentle stop” function to ensure a delicate stop on the low window.

Packaging: AISI 316L stainless steel cylinder with satin treatment Corona flasher with LED lights Acoustic motion alarm emergency lowering in the event of a power failure (excludable) hydraulic lock in the raised position (in case of blackout) release key for manual emergency lowering

TECHNICAL CHARACTERISTICS: Actuator type: Hydraulic actuator Cylinder height above ground: 800 mm Cylinder diameter: 275 mm Cylinder treatment type: Satin finish Rise time: ~7 s Descent time: ~4.5 s Emergency descent device: YES (excludable) Emergency descent time: ~1.5 s Lifting obstacle detection device: YES Unlocking device: YES Downhill slowdown: Yes Network supply voltage: 220-240V ~ 50/60Hz Max power: 575 W Degree of protection hydraulic unit: IP67 Type of use: Intensive Use (Traffic) Impact resistance: 67,000 J Crash resistance: 207,000 J Cockpit weight: 65 Kg Bollard weight: 130 Kg Load class (EN 124): C250 (25t) Ambient operating temperature: -15 °C/+55 °C Ambient operating temperature with heater: -25 °C/+55 °C
