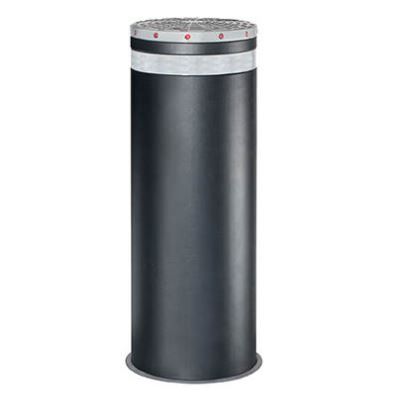

FAAC 116392 J355 F M50/ H1,200 SATIN STAINLESS STEEL Fixed Safety Bollard

J355 F M50/ H1,200 SATIN STAINLESS STEEL Fixed Safety Bollard

Actuator type: Fixed - Height: 1,200 mm

The FAAC J355 F M50 Fixed Bollard is designed and tested for the protection of sensitive areas such as airports, embassies, consulates, banks, ports, etc. The FAAC J355 F M50 Fixed Bollard has successfully passed the ASTM F 2656-07 virtual test. In fact, the M50 classification indicates that the FAAC FAAC J355 F bollard is capable of stopping a 6,800kg truck launched at 80Km/h (=50M/h). - Tested according to the American standard ASTM F 2656-07. - “shallow mounted” concept: very low depth of excavation required. - Complete aesthetic consistency with retractable models (HA); perfect for mixed installations.

Packaging: - steel cylinder with cataphoresis treatment and satin stainless steel “jacket” - crown flasher with LED lights - modular supporting structure to be buried

TECHNICAL CHARACTERISTICS: Cylinder height above ground: 1,200 mm Cylinder diameter: 355 mm Cylinder material type: S355JR EN 10210 steel Cylinder treatment type: Cataphoresis and dark grey RAL 7021 metallic polyester powder coating Reflective band height: 55 mm Standard reflective band color: White Break through resistance: 1,680.00 J Total weight: 680 Kg Excavation dimensions (LxPxH): 4,000 x 2,300 x 350mm
