FAAC 116391 J355 F M50/ H1,200 INOX Fixed Safety Bollard
- MT Code
- FAA_116391
- Manufacturer Code
- 116391
- Brand
- FAAC

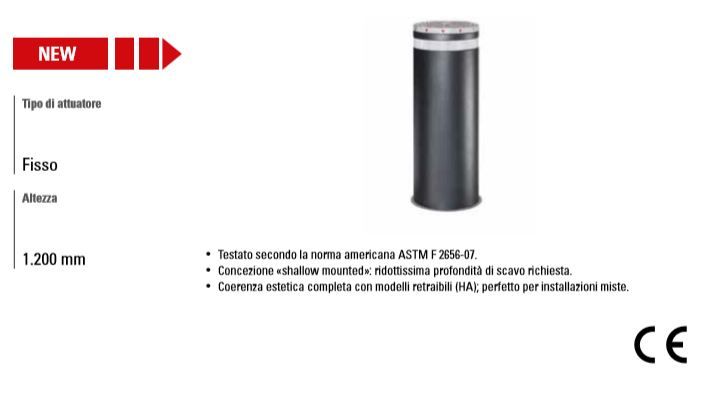

J355 F M50/ H1,200 INOX Fixed Safety Bollard
Tested according to the American standard ASTM F 2656-07. - “shallow mounted” concept: very low excavation depth required. - Complete aesthetic consistency with retractable models (HA); perfect for mixed installations.
J355 M50 F INOX is equipped with: - 16 mm thick steel cylinder with cataphoresis treatment and satin stainless steel “jacket” - crown flasher with LED lights* - modular supporting structure to be buried
TECHNICAL CHARACTERISTICS: Cylinder height above ground: 1,200 mm Cylinder diameter: 355 mm Cylinder material type: S355JR EN 10210 steel (thickness 16mm) Cylinder treatment type: AISI 316L brushed stainless steel coating Reflective band height: 55 mm Standard reflective band color: White Break through resistance: 1,680.00 J Total weight: 680 Kg Excavation dimensions (LxPxH): 4,000 x 2,300 x 350 mm
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 116391 | |
| Brand | FAAC |
