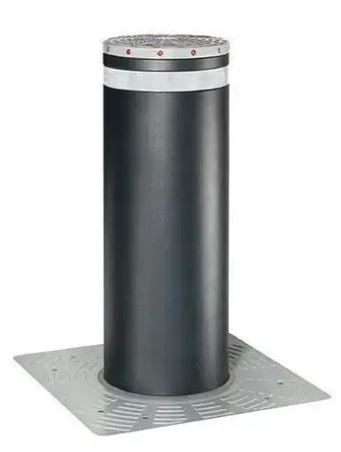

FAAC 116005 J355 HA M30-P1 EFO Automatic Retractable Security Bollard

J355 HA M30-P1 EFO Automatic Retractable Security Bollard

The FAAC J355 HA M30-P1 Automatic bollard is designed and tested for the protection of sensitive areas such as airports, embassies, consulates, banks, ports, etc. - Tested according to the American standard ASTM F 2656-07 M30 - Product designed “full optional”; already supplied complete with the main accessories - Guaranteed for high frequency of use - Locking in a high position guaranteed even in the event of lack of power - Extreme care in the choice of materials - Also available in the EFO (Emergency Fast Operation) version for very fast lifts

TECHNICAL CHARACTERISTICS: Actuator type Hydraulic actuator Cylinder height above ground 1,000 mm Cylinder diameter 355 mm Cylinder material type S355JR EN 10210 steel (thickness 16mm) Cylinder treatment type Type of material tested Aluminum RAL 9006 Rise time ~6 s SI rapid lifting device (EFO) Rapid emergency rise time ~1.5 s Descent time ~2 s Optional unlocking device Network supply voltage 230V~ 50 (60Hz) Max power 2500 W Degree of protection for hydraulic unit IP67 Type of use Security use Reflective band height 55 mm Standard reflective band color White Impact resistance 150000 J Crash resistance 656000 J Total weight 800 Kg Cockpit weight 250 Kg Bollard weight 550 Kg Ambient operating temperature -15 °C/+55 °C Ambient operating temperature with heater -40 °C/+55 °C Underground structure dimensions (LxDxH) 590 x 670 x 1.665 mm Excavation dimensions (LxDxH) 3,200 x 1,600 x 1,800 mm Standard connection cable 16+1 conductors, minimum section 1.5mm (not supplied) Max connection cable length 50 m Load class (EN 124) C25 (25t)

The product is equipped with: - 16 mm thick steel cylinder with cataphoresis treatment and painted - powder coating color dark grey metallic RAL 7021 - corona flasher with LED lights - hydraulic lock in a high position (in case of power failure) - emergency circuit for fast lifting (EFO version only)
