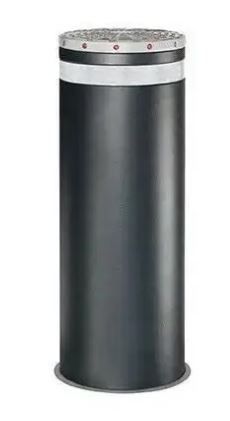

FAAC 116022 FIXED BOLLARD J355 M30-P1 PAINTED STEEL

FIXED BOLLARD J355 M30-P1 PAINTED STEEL

The FAAC J355 F M30-P1 Fixed Bollard is designed and tested for the protection of sensitive areas such as airports, embassies, consulates, banks, ports, etc. - Tested according to the American standard ASTM F 2656-07 M30 standards for dual unit installations. - “Shallow Mounted” concept: very low excavation depth required. - complete aesthetic consistency with retractable models (HA); perfect for mixed installations.

TECHNICAL CHARACTERISTICS: Cylinder height from the ground 1,000 mm Cylinder diameter 355 mm Cylinder material type S355JR EN 10210 steel (thickness 16mm) Cylinder treatment type Cataphoresis and powder coating dark gray RAL 7021 metallic polyester Type of material tested Aluminum RAL 9006 Reflective band height 55 mm Standard reflective band color White Crash resistance 656000 J Total weight 652 Kg Excavation dimensions (LxDxH) 4,000 x 2,300 x 350 mm The product is equipped with: - 16 mm thick steel cylinder with cataphoresis treatment and painted - powder coating color dark grey metallic RAL 7021 - corona flasher with LED lights* - modular supporting structure to be buried
