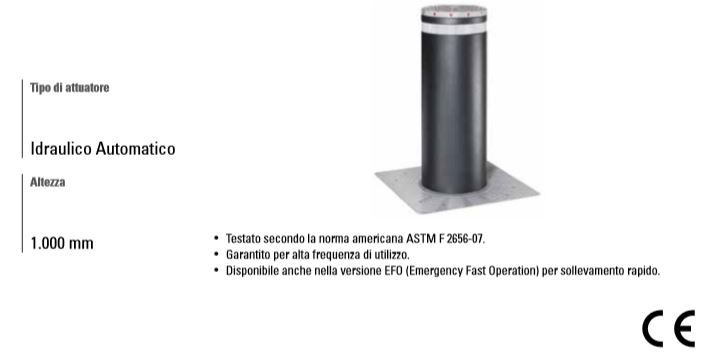

FAAC 116301 J355HA M30/H1.000 PAINTED STAINLESS STEEL HEAD RETRACTABLE SAFETY BOLT

J355HA M30/H1.000 PAINTED STAINLESS STEEL HEAD RETRACTABLE SAFETY BOLT

TECHNICAL CHARACTERISTICS: Cylinder height above ground: 1,000 mm Cylinder diameter: 355 mm Cylinder material type: S355JR EN 10210 steel (thickness 16mm) Cylinder treatment type: Cataphoresis and dark grey RAL 7021 metallic polyester powder coating Rise time: ~6 s (*) Quick lifting device: NO Rapid emergency climb time: - Descent time: ~2 s (*) Unlocking device: optional Network supply voltage: 220-240V ~ 50/60Hz Max power: 2.8 Kw (*) Degree of protection for hydraulic unit: IP67 Type of use: Security use Max thrust force: 5,000 N Impact resistance: 150000 J Crash resistance: 656000 J Cockpit weight: 180 Kg Bollard weight: 550 Kg Total weight: 730 Kg Ambient operating temperature: -15 °C/+55 °C Ambient operating temperature with heater: -40 °C/+55 °C Dimensions of underground structure (LxDxH): 590 x 670 x 1,665 mm Excavation dimensions (LxDxH): 3,200 x 1,600 x 1,800 mm Load class (EN 124): C25 (25t)
