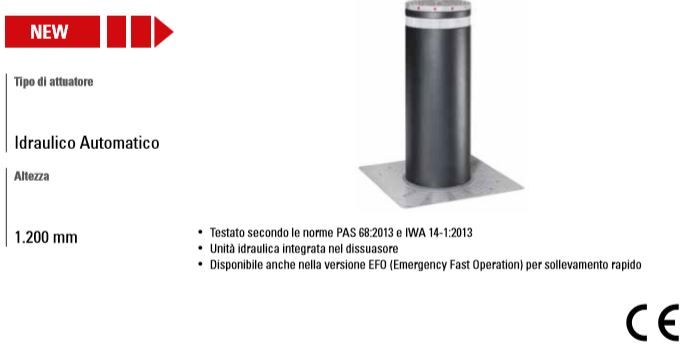

FAAC 116351 J355HA M50/H1,200 Concealed Security Bollard

J355HA M50/H1,200 Concealed Security Bollard

TECHNICAL CHARACTERISTICS: Cylinder height above ground: 1,200 mm Cylinder diameter: 355 mm Cylinder material type: S355JR EN 10210 steel (thickness 30mm) Cylinder treatment type: Cataphoresis and dark grey RAL 7021 metallic polyester powder coating Rise time: ~6 s (*) Quick lifting device: NO Rapid emergency climb time: - Descent time: ~3 s (*) Unlocking device: optional Network supply voltage: 220-240V ~ 50/60Hz Max power: 3.3 Kw (*) Degree of protection for hydraulic unit: IP67 Type of use: Security use Max thrust force: 9,000 N Crash resistance: 1,852,000 J Cockpit weight: 235 Kg Bollard weight: 850 Kg Total weight: 1085 Kg Ambient operating temperature: -15 °C/+55 °C Ambient operating temperature with heater: -40 °C/+55 °C Dimensions of underground structure (LxDxH): 570 x 770 x 1,730 mm Excavation dimensions (LxDxH): 3,100 x 1,600 x 1,850 mm Load class (EN 124): C25 (25t)
