FAAC 102604 Telephone Entry Control JCALL STANDARD/WEB

Telephone Entry Control JCALL STANDARD/WEB

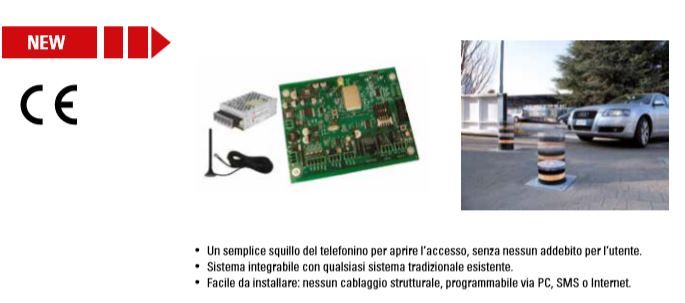

A simple mobile phone ring to open access, without any charge for the user. - System that can be integrated with any existing traditional system. - Easy to install: no structural wiring, programmable via PC, SMS or Internet.

TECHNICAL CHARACTERISTICS: JCALL CARD Ambient operating temperature: -30°C to +70°C Supply voltage: 12V Average current consumption: At rest: 90 mA. During calls: 150 mA. During the GPRS connection: 300 mA Output port for programming and monitoring from PC: Mini-USB serial port type B Number of inputs/outputs main board: 4 digital inputs, 2 relay outputs Max. number of outputs using the expansion card: Up to 10 relay outputs Frequency band: quadri-band GSM 850/900/1800/1900 MHz GSM network: 2G (SIM with only 3G or 4G coverage are not compatible) Card size: 136 x 108 x 30 mm Approximate card weight: 100g Maximum voltage applicable to terminals: 24 VACA /VDC Maximum current applicable to OUT terminals: 1 A Max. current available for peripheral supplies: 240 mA @12V, 500 mA @5V

FUNCTIONAL CHARACTERISTICS JCALL SYSTEM JCALL control unit: up to 10 gates and access for groups of users differentiated Number of users managed: Up to 2000, organizable in groups with differentiated access permissions Deadline control: By group and for individual user Time slots: Up to 4 daily time slots Access allowed: Time slots, days of the week, months of the year Programming: from PC, via SMS and via the Internet (via GPRS). Access log: Last 30 days

POWER SUPPLY Input voltage: 88-264VAC /47-63Hz Input current: 400 mA @230VAC Output voltage: 12V DC Output current: 2.1 A Power supply type: Stabilized switching Power supply dimensions: 78 x 51 x 28 mm Approximate power supply weight: 200 g

GSM ANTENNA Connector: SMA, UFL SMA antenna cable length: 3 m SMA antenna attachment: Magnetic SMA antenna height: 7 cm
