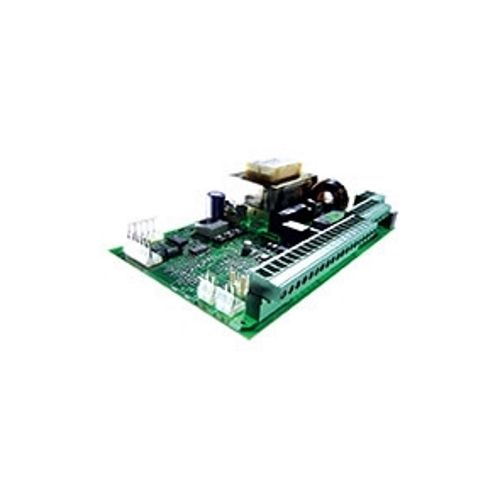

FAAC 117300 Central Equipment, Electronic Board, Bollard, JE

Central Equipment, Electronic Board, Bollard, JE

TECHNICAL CHARACTERISTICS: Network supply voltage: 230V~ (+ 6% — 10%) 50/60 Hz Max power: 7W Max motor power: 1,200W Accessory supply voltage: 24V Max accessory load: 500mA Ambient operating temperature: -20°C ÷ +55°C Protection fuses: F1 = 10A-250~ F2=T 0.8A-250~ Operating logics: Automatic, Automatic 1, Semiautomatic parking, Parking-Automatic, Condominium-Automatic J Series, Condominium-Automatic, Man-Present, Remote, Custom Working time: Programmable (0 to 4 min) Pause time: Programmable (0 to 4 min) Motor force adjustment: Programmable on 50 levels Terminal block inputs: Loop 1, Loop 2, Open, Close, Locking Safety, Stop, Emergency, Power supply 230V~ + Ground Terminal block outputs: Flasher, Motor, 24V power supply, BUS Quick connector: Open and close end stroke, Motor condenser Programmable functions: Logic, Pause Time, Force, Loop 1 and 2, Torque at the start, Prelink, Slow shutdown, Slow down time, Working time, Lamp light output, Fail-safe output, State output, BUS output, Request for assistance Integrated detector with 2 independent channels: Real-time self-calibration, Sensitivity independent of the geometry of the coils, Adjustment of the working frequency of the coils, Busy turn message with LED display, Status of the coils addressable on programmable outputs, Adjustment time adjustable on two levels.
