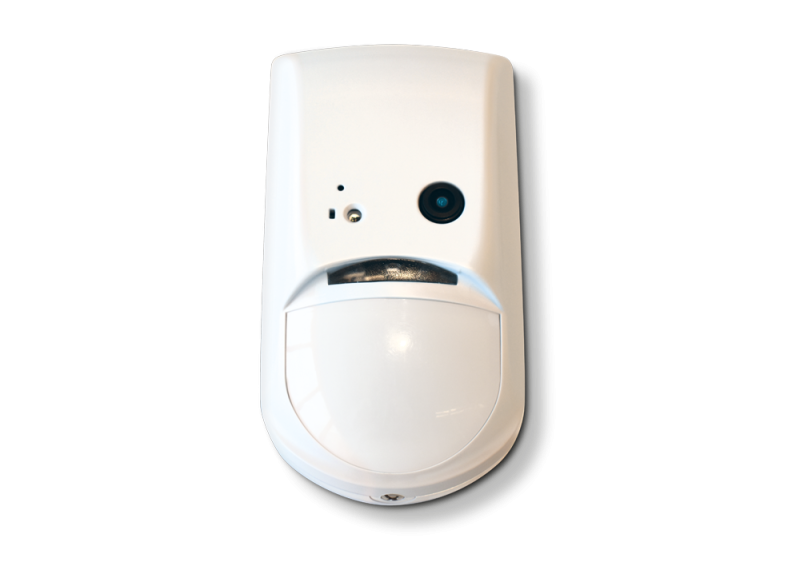

AVS ELECTRONICS 1131156 JET PA WS4 VIDEO Passive infrared sensor with integrated camera and audio via two-way radio with anti-masking

- Passive infrared with aspherical lens and look down mirror

- IR coverage: 15 meters, 90° aperture, 7 planes and 41 sectors with sealed optics

- PET IMMUNE

- Anti-masking with active IR, adjustable detection distance

- Accelerometer for tear and disorientation signaling

- Use: indoor

- Frequency: FM 868 MHz

- multi-frequency

- bidirectional

- Radio range: up to 150 m in the open field

- Communication: pre- and post-alarm alarm-images tamper-battery-survival-masking-sensor model-battery voltage-operating temperature

- Simplified programming: self-learning in the control unit

- Setting operating parameters directly from the control unit, PC or APP MY AVS MANAGER

- Sensor Firmware Update

- Power supply: 2 batteries 3 Vdc lithium 1.1 A type CR123

- Autonomy: 2 years by activating the reduced consumption function

- Dimensions (LxWxH): 39 x 65 x 120 mm

- Compatibility: RAPTOR/XTREAM control panels with XSAT WS4 VIDEO

VIDEO Features

VGA camera - 90° coverage - 320 x 240 resolution - Image transfer rate: 100Kbit/s (about 25” full load) - Infrared illuminator - Depth of field: 12 m in relation to brightness - Automatic Day/Night function - Recording and sending audio files of the event - Remote image request - Exclusion of the camera from the user - Low consumption with intelligent management of camera activation - Video compatibility: MY AVS Alarm application
