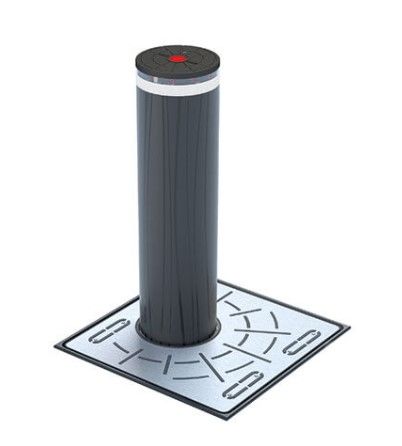

FAAC 117001 JS 48 HA Concealed Security Bollard

JS 48 HA Concealed Security Bollard

Type of actuator: Automatic Hydraulic - Height: 1,000 mm - Maintenance possible with the bollard still installed; does not require the use of lifters - Interchangeable protective jacket to always have a new bollard - Performance certified according to PAS 68 standards; IWA 14-1 and ASTM F2656: able to stop a truck at 50 km/h, penetration index P1, still operational after impact Packaging: steel cylinder with cataphoresis treatment MDure anthracite protective shirt with exclusive FAAC aesthetic finish Corona flasher with LED lights Acoustic motion alarm refractive band hydraulic lock in a high position (in case of power failure) release key for manual emergency lowering emergency circuit for fast lifting (EFO version only)

TECHNICAL CHARACTERISTICS: Actuator type: Hydraulic Cylinder height above ground: 1,000 mm Cylinder diameter: 275 mm Cylinder treatment type: Cataphoresis Protective shirt type: MDure Reflective band height: 55 mm Standard reflective band color: White Tested material type: Aluminum Type of treatment tested: Rilsan anti-corrosion resin Rise speed: 170 mm/s Quick lifting device: No Fast climb speed with EFO: — Unlocking device: Yes Descent speed: 250 mm/s Network supply voltage: 207-243V ~ 50/60 Hz Max power: 3,500 W Type of use: Perimeter Security Crash resistance: 673,000 J Ambient operating temperature: -15°C ÷ +80°C Ambient operating temperature with heater: -40°C ÷ +80°C Degree of protection hydraulic unit: IP67 Load class (EN 124): C250 Bollard weight: 530 kg Cockpit weight: 200 kg
