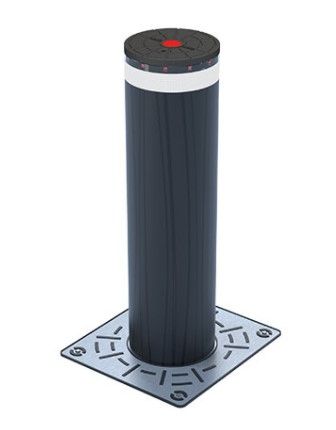

FAAC 117301 JS 48 R INOX Removable Safety Bollard

JS 48 R INOX Removable Safety Bollard

Type of actuator: Removable - Height: 1,000 mm - Removable cylinder for the temporary opening of the gate - Interchangeable protective jacket to always have a new bollard - Performance certified according to PAS 68 standards; IWA 14-1 and ASTM F2656: able to stop a truck at 50 km/h, penetration index P1 - “Shallow Mounted” concept: very low excavation depth required Packaging: steel cylinder with cataphoresis treatment MDure protective shirt with satin stainless steel Corona flasher with LED lights*

TECHNICAL CHARACTERISTICS: Cylinder height above ground: 1,000 mm Cylinder diameter: 275 mm Cylinder treatment type: Cataphoresis Protective jacket type: AISI 316 stainless steel + MDure Reflective band height: 55 mm Standard reflective band color: White Tested material type: Aluminum Type of treatment tested: Rilsan anti-corrosion resin Base weight to be buried: 120 kg Type of use: Perimeter Security Crash resistance: 673,000 J Bollard weight: 180 kg
