GIBIDI K1240EN/BF KIT PASS1240EN

Irreversible electromechanical gearmotor at 230 Vac and 380 Vac/three-phase for sliding gates of large dimensions and weight (up to 2,500 kg) suitable for intensive use.

EASY TO INSTALL

Control unit in an optimal position for the installer.

Encoder technology for self-learning of parameters.

Possibility of adjustments on the horizontal and vertical axis.

QUIET AND ROBUST

Made with large gears made of heat-treated steel and in a complete oil bath (1 Kg of Oil).

Painted aluminum body which also guarantees reliability over time.

PERFORMING

Special motors in oil bath for excellent performance even with heavy use, versions with double-disc mechanical clutch.

New irreversible and anti-slip gear unit.

TECHNOLOGICAL AND SAFE

Built-in control unit equipped with all safety inputs, integrated encoder for easy programming and for adjusting the anti-crushing sensitivity.

The maximum level of safety, as required by EN 12453.

DESIGN

The most compact in its category thanks to the horizontal direct drive motor, only 14 cm thick.

Code: GIBK1240EN/BFSLT

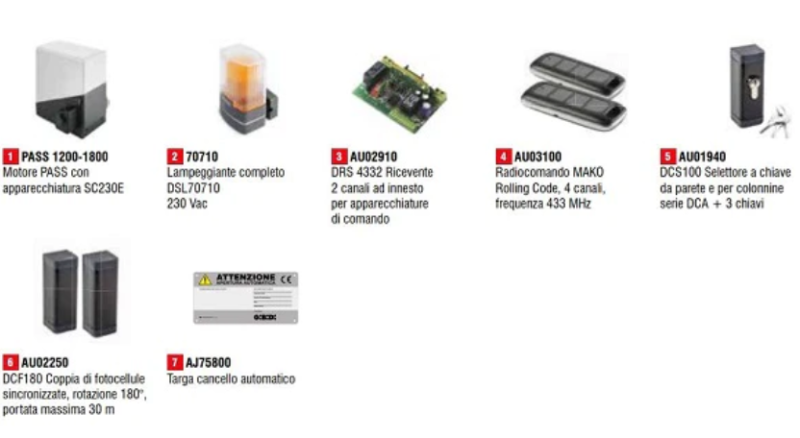

KIT CONSISTS OF:

1 - PASS1240E - PASS motor with SC230E equipment with slowdown and anti-crushing

2 - 70710 - Complete flashing light DSL70710 230 Vac

3 - AU02910 - DRS 4332 2-channel plug-in receiver for control equipment

4 - AU03100 - 2 MAKO rolling code radio controls, 4 channels, frequency 433 MHz

5 - AU01940 - DCS100 key selector for wall and columns DCA series + 3 keys

6 - AU02250 - DCF180 Pairs of synchronized photocells, 180° rotation, maximum range 30 m

7 - AJ75800 - Automatic gate plate
