Kit Video Balun Passivi Tx/Rx, HD-TVI/AHD/HD-CVI,

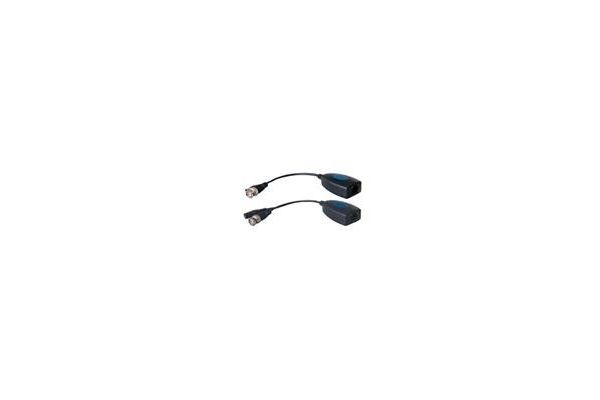

SKILLEYE SEU-P1PV03 Kit Video Balun Passivi Tx/Rx, HD-TVI/AHD/HD-CVI,

MT Code: SKL_SEU-P1PV03
Manufacturer Code: SEU-P1PV03
Brand: SKILLEYE

Passive HD video transmitter + receiver kit (HD-TVI/AHD/HD-CVI) for UTP 24 at 16AWG, male BNC and terminal block with 12 Vdc power transmission to the camera. Transmission Distance HDTVI@720P/1080P:200m- @4MP:230m- @8MP:180m. HDCVI Transmission Distance @720P:300m- @1080P/8MP: 200m- @4MP:250m. AHD Transmission Distance @1080P:350m- @4MP:250m- @5MP:180m- @8MP:300m. Analog Video Transmission Distance 600m. Requires UTP CAT 5E/6. Bandwidth 0 to 50MHz. 2K surge protection

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002662468
Codice Produttore	SEU-P1PV03
Brand	SKILLEYE
Canali video	1	Ch
Standard video supportati	HD-TVI, AHD, HD-CVI, Video Analogico
Banda passante	0÷50	MHz
Protezione sovratensioni	2KV conforme IEC61000-4-5
Temperatura di funzionamento	0 ~ 55	°C
Umidità operativa	0~95	%
Materiale custodia	ABS
