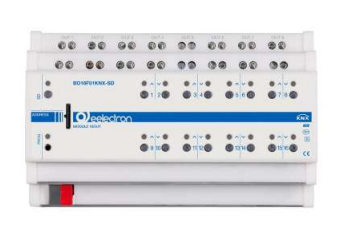

EELECTRON BO16F01KNX UNIVERSAL DIN MODULE 16 OUT PLUS

The EELECTRON BO16F01KNX device is a universal DIN rail actuator compatible with the KNX protocol, designed to offer a wide range of control and management functions within domestic and industrial environments.

Key Features

This device integrates 16 A-230V AC relay outputs, which can be configured in different ways to meet various control needs.

Output Configurations

• 16 outputs for controlling lights and loads
• 16 channels for PWM valve control
• 8 channels for controlling shutters and blinds
• 8 channels for 3-way valve control
• 4 2-tube fan coil actuators or 2 4-tube fan coil actuators

Special Features

It is possible to combine two or more relays with logical interlock for the control of 4-tube or 3-speed fan coils, or combine groups of relays (up to 6) for special functions with logical interlock.

Version with microSD card reader

<p-The BO16F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device, avoiding programming in the field or allowing a quick recovery in the event of a failure.

Technical Specifications

Dimensions and Assembly

• Device dimensions (without plate): 96 x 96 x 36 mm
• Mounting on a built-in box (British, German or Italian)

Feeding

• EIB/KNX bus power supply: 21 ÷ 32 V DC
• Maximum consumption: 30 mA

Conditions of Employment

• Operating temperature: -5 °C +45 °C
• Storage temperature: -20 °C +55 °C
• Relative humidity (non-condensing): max. 90%

The BO16F01KNX device is designed to provide flexibility and reliability in the control and management of various automation systems, making it an ideal choice for residential and commercial applications.
