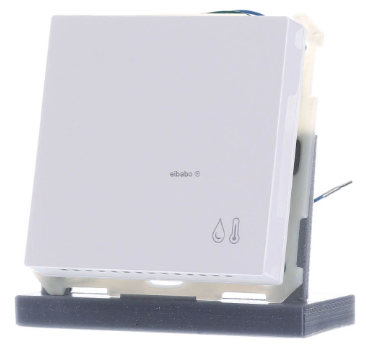

MDT SCN-RTR63O.01 KNX 63 object controller, glossy white studio, SCN-RTR63O.01

KNX object controller 63, glossy studio white, SCN-RTR63O.01 – MDT – 4251916111755: Object controller 63, glossy studio white finish. With temperature/humidity sensor and 4 inputs. Flush mounting. Integrated BCU. Suitable for 63mm systems/ranges: e.g. Busch-Jaeger linear future, solo, carats and Busch-axcent. Thermoregulator for indoor environments. Range from -10 to +50°C. Selectable temperature controller (PI, two positions, PWM). 1Bit +/-, 1Byte or 2Byte absolute object for setpoint adjustment. The nominal values are stored in the event of a bus voltage failure. Min/max limit values, antifreeze alarm, min/max memory. The operating mode can be set via Bit/Byte objects. Temperature and humidity sensor with dew point calculation. Message when you leave your comfort zone. 4 binary inputs to connect potential-free contacts (buttons or window/auxiliary contacts). Manual or automatic ventilation control. 14 byte object for plain text diagnostics. Installation in an installation box with support ring included. Recommended installation height: 1.6 m. Integrated bus coupling unit.
