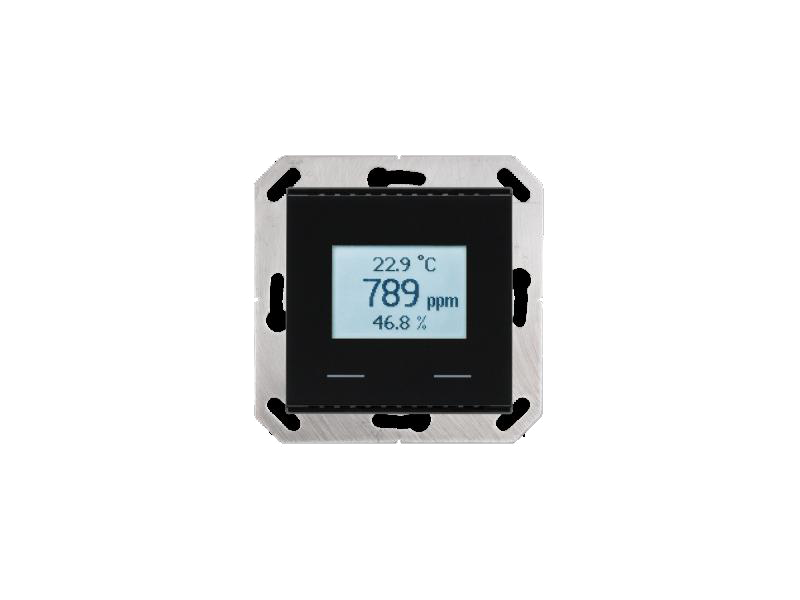

ELSNER 70619 KNX AQS/TH-UP Touch- jet black RAL 9005 KNX CO2 sensor- Temp.- Humidity- Touch buttons

The ELSNER 70619 product, called KNX AQS/TH-UP Touch, is a combined sensor for indoor environments that measures CO2 concentration, temperature and humidity, also calculating the dew point.

Key Features

• It measures CO2 concentration, temperature and humidity.
• Calculate the dew point based on the measured values.
• It integrates touch buttons for intuitive management.
• Available in black (RAL 9005).

Control Functionality

• Temperature control with the possibility of adjusting the desired temperature using the touch buttons.
• Output of two temperature limit values.
• Integrated with the KNX bus for centralized configuration via ETS.

Feedback and User Interface

• LED for visual feedback.
• Display showing temperature, humidity and CO2 values.
• Possibility to receive external measurements and calculate mixed values (own and external).

Other Features

• Possibility to manage weekly scenes and timers with 8 periods of time.
• Energy saving screen that displays the time or the indoor/outdoor temperature.
• Four inputs (binary or T-NTC temperature sensor inputs).
