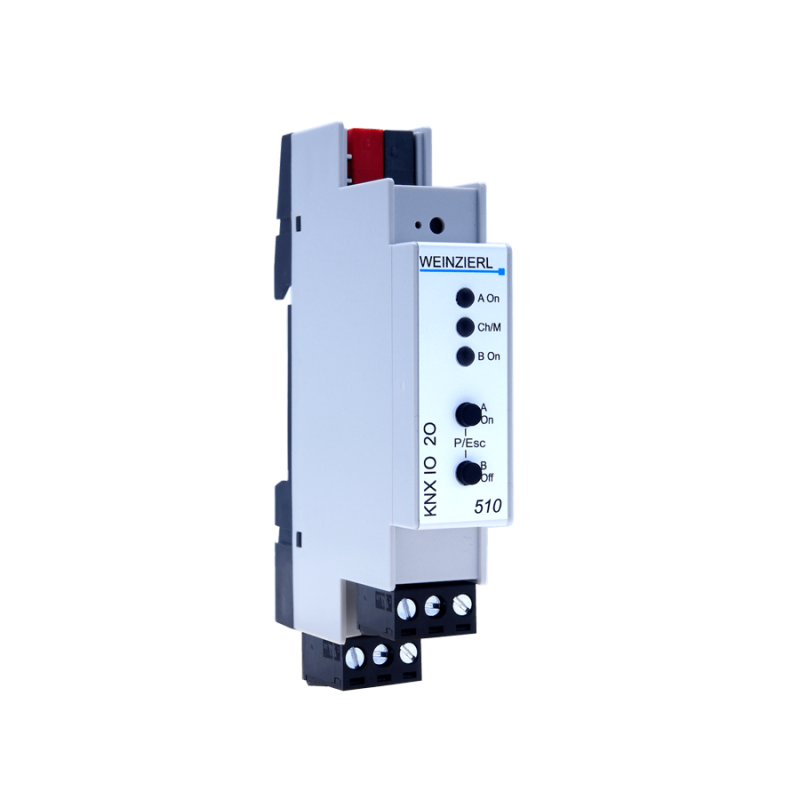

WEINZIERL 5224 KNX IO 510
- MT Code
- WNZ_5224
- Manufacturer Code
- 5224
- Brand
- WEINZIERL
The KNX IO 510 (2O) is a compact switching actuator with 2 bi-stable relay outputs. The actuator provides the function for universal outputs including scene control, timer, staircase lightning and to control heating valves (PWM for thermoelectric valve drives).
Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.
TECHNICAL DATA:
Mechanical data
Housing: plastic
DIN rail mounted device, width: 1 modules (18 mm)
Weigth: approx 50g
User Interface
two keys for on device settings
three multi color LEDs
KNX programming LED and KNX programming key
KNX
Device Model System B
Compatible with ETS 4.2 (or higher)
Connectors
Connector for KNX Bus (red / black)
Pluggable screw connector (3 poles) for actuator channel 1
Pluggable screw connector (3 poles) for actuator channel 2
Output channels (actuator)
Relay type: 230V~/8A, bi-stable
Depending on load type (capacitive or inductive)
the switching power can be reduced significantly.
Codice a barre | 4260262772244 |
---|---|
Codice Produttore | 5224 |
Brand | WEINZIERL |
