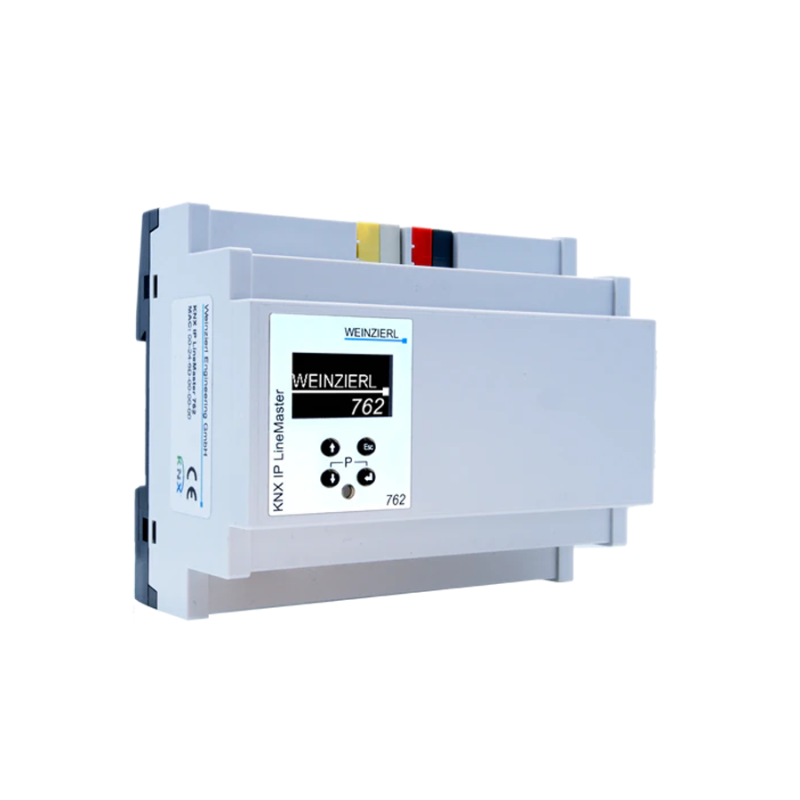

WEINZIERL 5212 KNX IP LINEMASTER 762

The KNX IP LineMaster 762 combines the central functions of a KNX bus line in a compact device (6TE): a 640 mA bus power supply with choke, IP router and IP interface. In addition to the bus voltage, the power supply also has an auxiliary voltage output. The IP router in the device allows the forwarding of telegrams between different lines via a LAN (IP) as a fast backbone. Via the interface function the KNX line can be addressed directly from a PC (eg with ETS version 4.2 or higher).

The device operates according to the KNXnet/IP specification using core, device management, tunneling and routing. The configuration is done with the ETS (version 4.2 or higher). An easy-to-read OLED display on the front allows the display of the operating parameters locally on the device.

Power supply with choke

The power supply with high efficiency of the KNX IP LineMaster 762 provides a 29V bus voltage for the KNX system and an additional output with auxiliary voltage for supplying other devices. Special operating conditions such as short circuit, overvoltage, overload or overtemperature are logged and can be read off the display. The current current consumption is also displayed. A reset of the connected bus nodes is possible via the keypad.

KNX IP Router

The KNX IP LineMaster 762 integrated KNX IP router allows the transmission of telegrams to other lines via the LAN (IP) as a fast backbone (KNXnet/IP routing). The KNX IP LineMaster 762 thus also assumes the function of a KNX line coupler.

KNX IP Interface

The KNX IP LineMaster 762 can be used as an interface for bus access via IP. The KNX system can be configured and monitored from any PC in the LAN (KNXnet/IP tunnelling).

TECHNICAL DATA:

Mechanical data

Housing: plastic

DIN rail mounted device, width: 6 modules (108 mm)

Weigth: approx 300 g

User Interface

Four keys for on device settings

OLED display

KNX programming LED

Ethernet

100BaseT (100Mbit/s)

6 KNXnet/IP Tunneling connections

KNX

Medium IP/TP

Filter table 8 kByte (64k group addresses)

compatible with ETS 4.2 (or higher)

Long Frame

Connectors

Plug for external power supply 230 V AC

Connector for KNX TP (red/black)

Connector for auxiliary power output (yellow/white)

LAN RJ-45 socket
