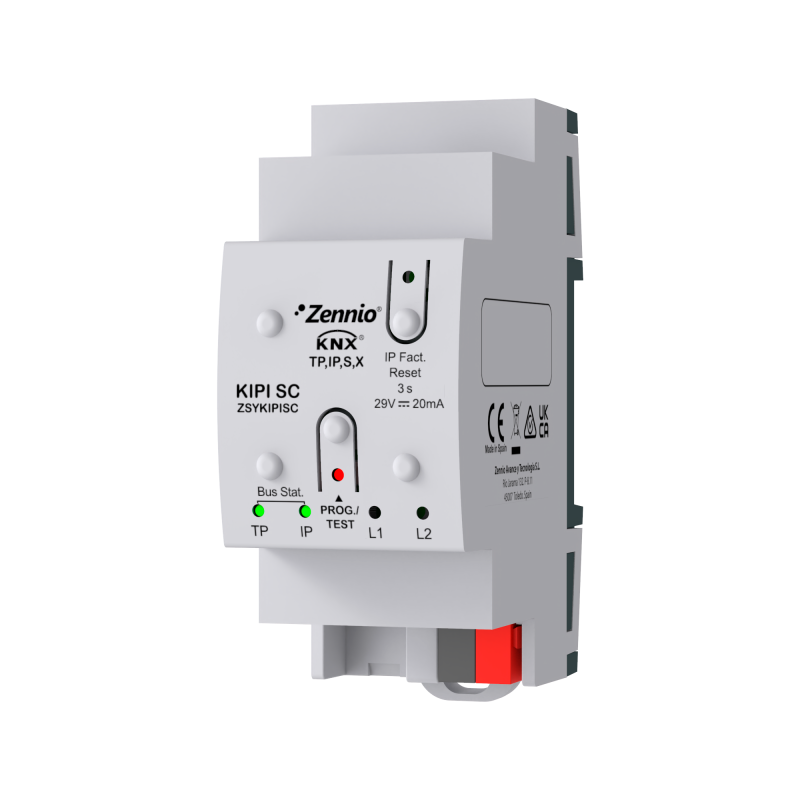

ZENNIO ZSYKIPISC Knx/Ip PLess interface

The ZENNIO ZSYKIPISC is a KNX-IP interface designed to allow bidirectional communication between an Ethernet network and a KNX TP system. This device allows you to address, program or monitor components present in the KNX TP network from the Ethernet side, using the KNXnet/IP Tunneling protocol, with the possibility of managing up to 5 parallel connections.

Key Features

• Support for KNX Secure and extended frames, with a maximum frame length of 254 bytes.
• DIN rail mounting (2 units).
• It does not require an external power supply.

Communication Features

The ZSYKIPISC allows efficient and secure communication between the Ethernet network and the KNX TP system, ensuring compatibility with KNX Secure standards. This functionality is essential for applications that require centralized management and real-time monitoring of plant components.

Installation and Use

The interface is designed to be easily integrated into existing systems, thanks to standard DIN rail mounting. The lack of need for an external power supply simplifies installation and reduces maintenance costs.

Technical Details

• Communication protocol: KNXnet/IP Tunneling.
• Maximum number of parallel connections: 5.
• Maximum frame length: 254 bytes.
• Mounting type: DIN rail (2 units).
