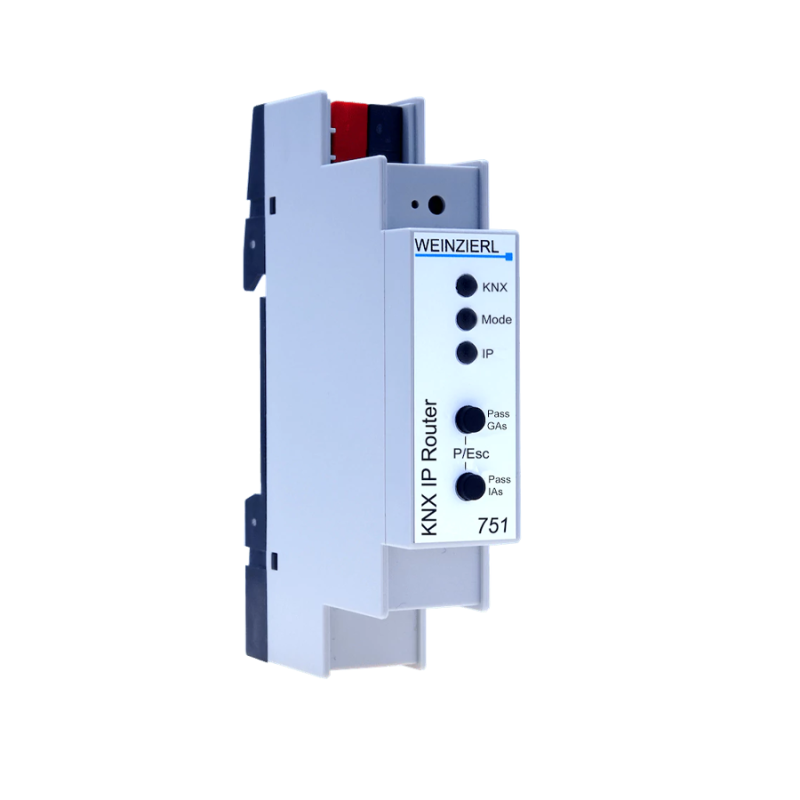

WEINZIERL 5243 KNX IP Router 751

The KNX IP Router 751 with compact design has a width of only 1 module (18 mm) and is powered by the KNX bus. The device forwards telegrams between different KNX TP lines via LAN (IP) as a fast backbone and is an alternative to KNX line coupler. The KNX IP Router 751 can also be used in the ETS® as a programming interface. The KNX IP Router 751 has a full-range filter table and a large telegram buffer. The buttons and LEDs on the device allow a local diagnosis including the operating status and communication errors.

TECHNICAL DATA:

Controls and indicators

Housing: plastic

DIN rail mounted device

Width: 1 TE (18 mm)

Controls and indicators

2 buttons + KNX programming button

3 LEDs bicolor + KNX programming LED

Ethernet

10BaseT

5 KNXnet/IP Tunneling connections

KNX

Medium IP/TP

Filter table 8 kByte (64k group addresses)

Long Frame

Power supply

From KNX Bus, approx. 15 mA

Connectors

KNX connector

LAN RJ-45 socket
