ARCUS-EDS 41040223 KNX-LED4-AQS

Product Description ARCUS-EDS 41040223 - KNX-LED4-AQS

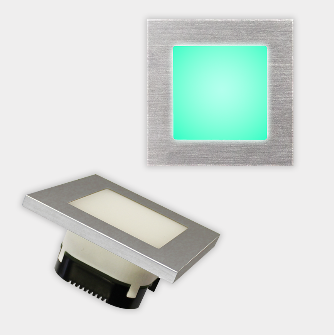

The KNX-LED4-AQS is an RGB (WA) lighting element designed for recessed mounting. This device offers a wide range of functions for lighting control in smart home and home automation environments.

Key Features

The KNX-LED4-AQS has 9 pre-set scenes that are not factory editable, but can be configured for up to 48 customized scenes.

Technical Specifications

• Color and Brightness: Selection of solid colors or 16 million adjustable colors. It also includes the amber component independent of RGB.
• Luminous Flux: 150 lm, dimmable.
• Power: 3W
• KNX Power Voltage: Bus voltage 21.. 32 VDC.
• KNX Power Consumption: About 240 mW (at 24 VDC).
• Auxiliary voltage: 24.. 32 VDC/about 130 mA.
• Ambient Temperature: Operating: 0.. +50°C, storage: 0.. +80°C.
• Ambient Humidity: 0.. 95% R.h not condensing.

Design and Construction

• Front: Aluminium frame: Ø 84 mm or square 80 x 80 mm, with acrylic cover or half sphere height of 33 mm.
• Case: 50 x 50 mm, depth 32 mm.
• Protection Class: IP20.

This device is ideal for integrating into KNX home automation systems, offering high flexibility and customization for lighting control.
