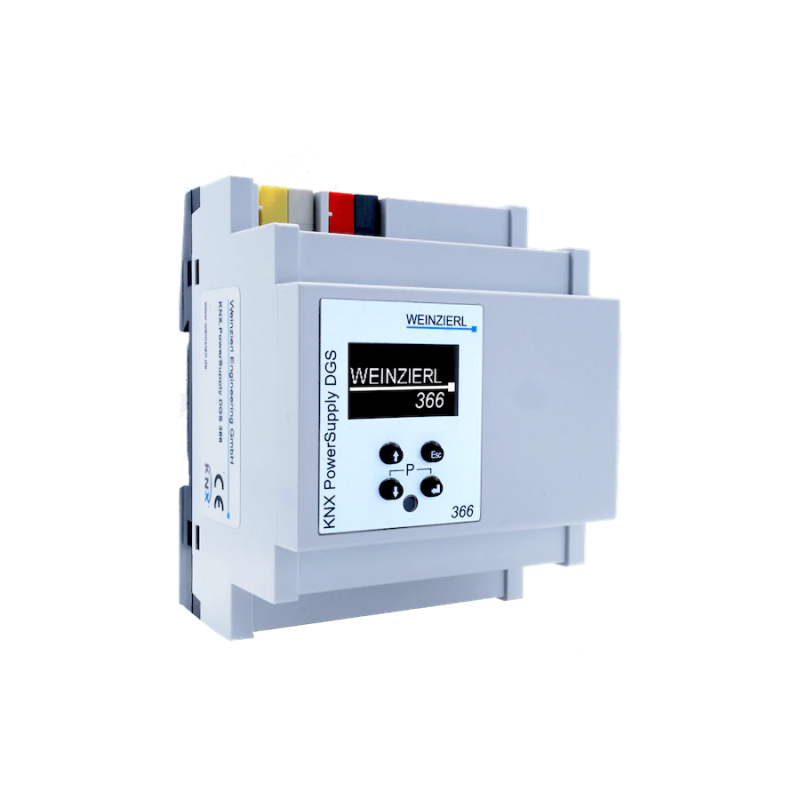

WEINZIERL 5207 KNX POWERSUPPLY DGS 366

The KNX PowerSupply DGS 366 is a 640 mA bus power supply with high efficiency and a small footprint of only 4 units (72 mm). The device has a bus choke and additionally provides an output for auxiliary power.

Power, diagnosis and logic functions

The integrated KNX node monitors output current, bus voltage and the temperature in the enclosure. Various logic functions are available for application purpose. The configuration is done with the ETS (version 4.2 or higher). An easy to read OLED display on the front panel enables the user to display the operating parameters locally on the device.

TECHNICAL DATA:

Mechanical data

Housing: plastic

DIN rail mounted device, width: 4 modules (72mm)

Weigth: approx 260 g

User Interface

Four keys for on device settings

OLED display

KNX programming LED

KNX

Device Model System B

Compatible with ETS 4.2 (or higher)

Connectors

Plug for external power supply 230 V AC

Connector for KNX TP (red/black)

Connector for auxiliary power output (yellow/white)
