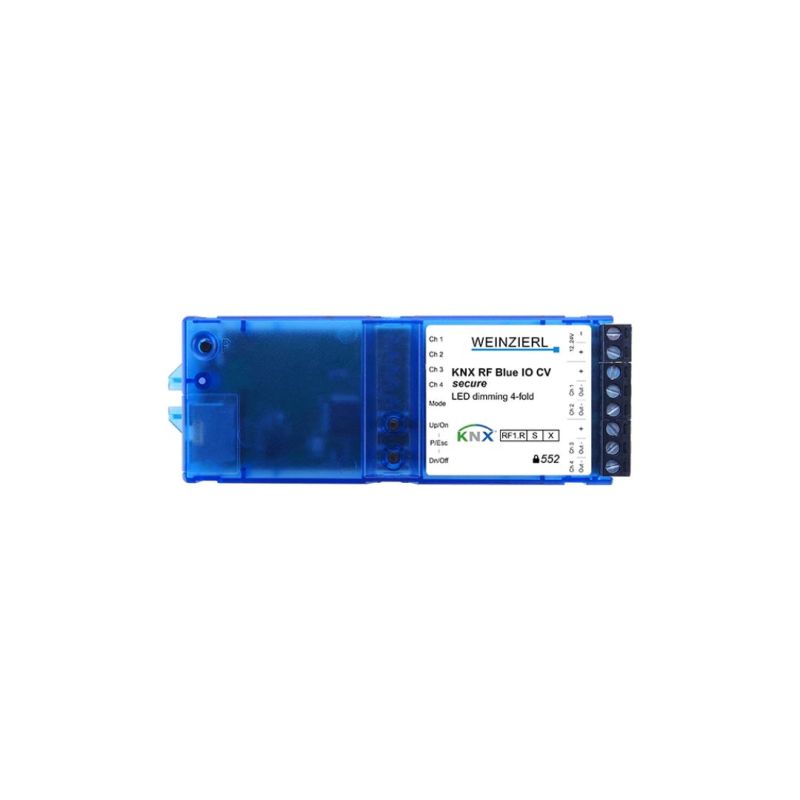

WEINZIERL 5379 KNX RF BLUE IO 552 CV SECURE
- MT Code
- WNZ_5379
- Manufacturer Code
- 5379
- Brand
- WEINZIERL
The KNX RF Blue IO 552 CV secure is a compact RGB / RGBW / Tunable White dimming actuator with 4 PWM outputs.
The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent dimmer channels. Every configuration allows controlling the channel by switching, rel. dimming and dimming value.
Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer.
Two push buttons and five LEDs allow a local operation and a visualization of the device state.
In addition to the output channels the device includes 16 independent functions for logic or timer control.
The KNX RF Blue IO 552 CV secure only supports KNX RF S Mode. The device supports KNX Data Security.
TECHNICAL DATA:
Mechanical data
Housing: Transparent plastic
Dimensions: 132 x 46 x 20 mm
Weight: approx. 75 g
Controls and indicators
2 buttons and 5 LEDs (multicolor)
KNX programming button with LED (red)
Connectors
Pluggable screw connector (2 poles) for power supply
Pluggable screw connectors (3 poles) for dimming channels 1/2 and 3/4
Cross-section of connectors: 1.5 … 2.5 mm²
Integrated antenna
Power supply
With 24 V⎓, approx. 10 mA with no load
Output (dimming actuator)
Dimmer for LEDs with constant voltage input
PWM (frequency 480 / 600 Hz)
Supply voltage: 12 … 24 V⎓
Max. load current: 6 A total, freely distributable
Max. Pout: 144 W
RF Interface
KNX RF, ISM Band 868,3 MHz, FSK
Output power: 14 dBm
Codice a barre | 8000002665902 |
---|---|
Codice Produttore | 5379 |
Brand | WEINZIERL |
