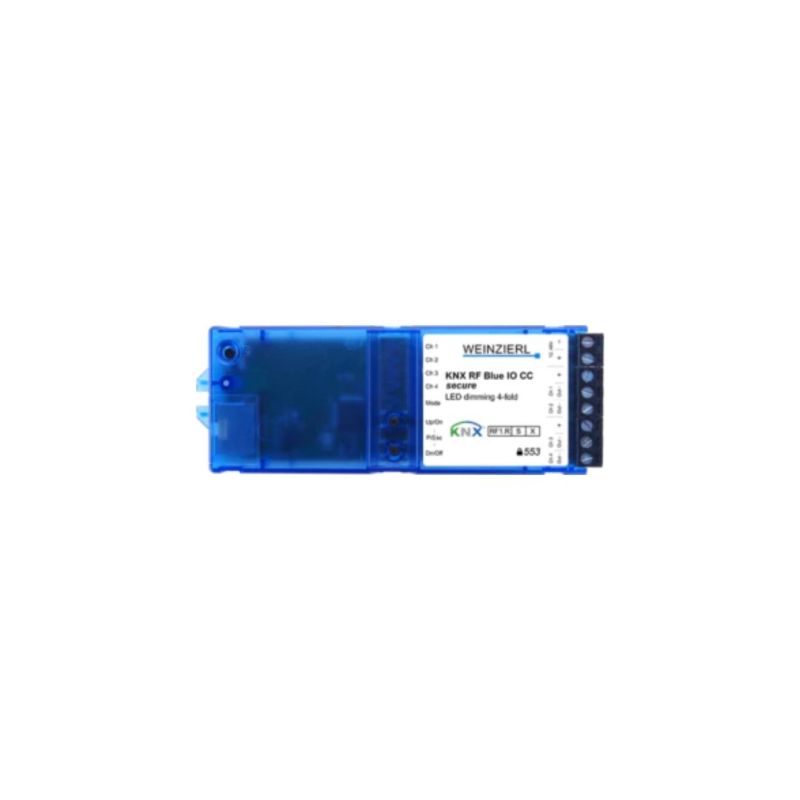

WEINZIERL 5380 KNX RF BLUE IO 553 CC SECURE

The KNX RF Blue IO 553 CC secure is a compact RGB / RGBW / Tunable White dimming actuator with 4 constant current dimming outputs.

The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent dimmer channels. Every configuration allows controlling the channel by switching, rel. dimming and dimming value.

Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer.

Two push buttons and five LEDs allow a local operation and a visualization of the device state.

In addition to the output channels the device includes 16 independent functions for logic or timer control.

The KNX RF Blue IO 553 CC secure only supports KNX RF S Mode. The device supports KNX Data Security.

TECHNICAL DATA:

 Mechanical data

Housing: Transparent plastic

Dimensions: 132 x 46 x 20 mm

Weight: approx. 75 g

Controls and indicators

2 buttons and 5 LEDs (multicolor)

KNX programming button with LED (red)

Connectors

Pluggable screw connector (2 poles) for power supply

Pluggable screw connectors (3 poles) for dimming channels 1/2 and 3/4

Cross-section of connectors: 1.5 … 2.5 mm²

Integrated antenna

 Power supply

With 48 V⎓, approx. 9 mA with no load

 Output (dimming actuator)

Dimmer for LEDs with constant current input

Supply voltage: 12 … 48 V⎓

Max. output voltage < Supply voltage

Max. configurable load current: 500 mA each channel (channels can be bundled)

Max. Pout: 96 W

RF Interface

KNX RF, ISM Band 868,3 MHz, FSK

Output power: 14 dBm
