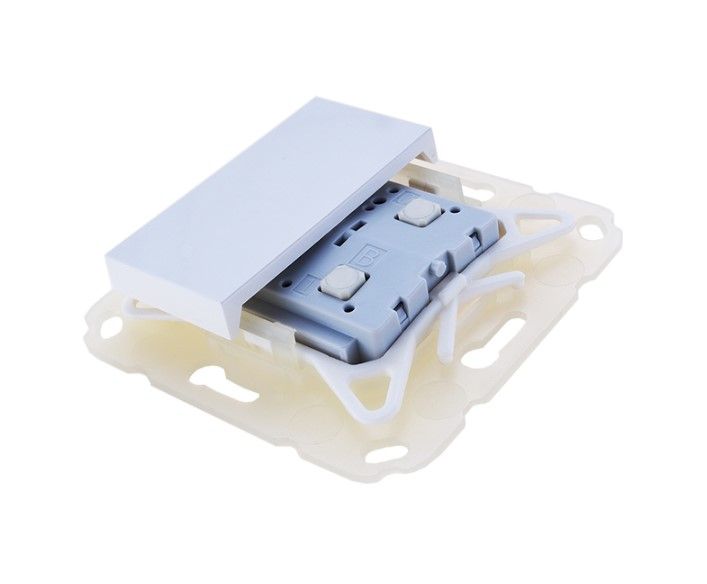

WEINZIERL 5326 KNX RF / ENO PUSH BUTTON 440 SECURE

The KNX RF / ENO Push Button 440 secure unites two wireless protocols in one device: EnOcean and KNX RF. Out of the box the push button operates in EnOcean mode. EnOcean Secure can be enabled via pressing a key combination. By configuration with the ETS® the push button switches to KNX RF mode with optional support of KNX Data Security. Via a factory reset the device can be switched back to EnOcean protocol.

TECHNICAL DATA:

Mechanical data

Housing: plastic

Insert with standardized PTM form factor

Dimensions wall mounting plate: 71 x 71 mm, for flush box 68 mm

Rockers for standard frames with internal dimensions 55 x 55 mm

Installation depth: none

Power Supply

Battery type CR2032

User interface

4 push buttons

2 LEDs (green) for transmission indication

KNX programming button with LED (red)

Connectors

USB Micro type B

RF Interface

EnOcean, ISM Band 868,3 MHz, ASK

KNX RF, ISM Band 868,3 MHz, FSK

Output power: 12 dBm

KNX

Medium RF

Interface protocol: HID/cEMI

Long Frame
