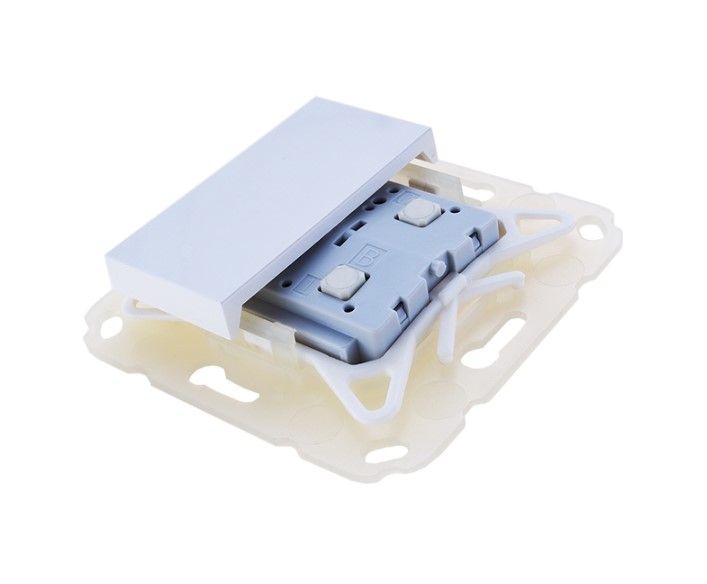

WEINZIERL 5374 KNX RF / ENO PUSH BUTTON 440 SECURE
- MT Code
- WNZ_5374
- Manufacturer Code
- 5374
- Brand
- WEINZIERL
Description
The KNX RF / ENO Push Button 440 secure unites two wireless protocols in one device: EnOcean and KNX RF. Out of the box the push button operates in EnOcean mode. EnOcean Secure can be enabled via pressing a key combination. By configuration with the ETS® the push button switches to KNX RF mode with optional support of KNX Data Security. Via a factory reset the device can be switched back to EnOcean protocol.
TECHNICAL DATA:
Mechanical data
Housing: plastic
Insert with standardized PTM form factor
Dimensions wall mounting plate: 71 x 71 mm, for flush box 68 mm
Rockers for standard frames with internal dimensions 55 x 55 mm
Installation depth: none
Power Supply
Battery type CR2032
User interface
4 push buttons
2 LEDs (green) for transmission indication
KNX programming button with LED (red)
Connectors
USB Micro type B
RF Interface
EnOcean, ISM Band 868,3 MHz, ASK
KNX RF, ISM Band 868,3 MHz, FSK
Output power: 12 dBm
KNX
Medium RF
Interface protocol: HID/cEMI
Long Frame
Data Sheet
Codice a barre | 4260262773746 |
---|---|
Codice Produttore | 5374 |
Brand | WEINZIERL |
