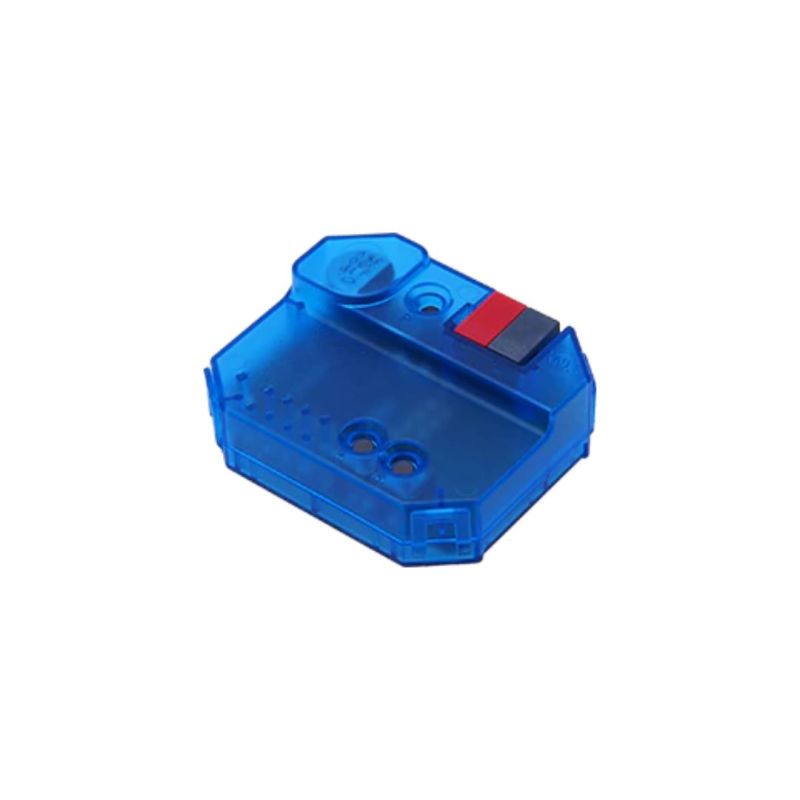

WEINZIERL 5474 KNX RF/TP COUPLER 673.1 SECURE

The KNX RF/TP Coupler 673.1 secure is a compact KNX radio coupler. It connects KNX RF devices of a radio line with the KNX Bus Twisted Pair.

The device has an extended filter table for main group 0 … 31. The coupler supports long frames and is compatible with the ETS® software ETS 5 or higher.

The buttons on the front panel allow disabling the telegram filter for testing purposes. The LEDs indicate operating conditions as well as communication errors on the KNX bus.

The power is supplied via the KNX bus.

The device supports KNX Data Security. The functionality of Security Proxy and Segment Coupler is only supported with the ETS 6 database.

TECHNICAL DATA:

Mechanical data

Housing: transparent plastic (ABS)

Matches in a standard flush-mounted box

Dimensions: 48 x 40 x 18 mm

Weight: approx. 20 g

Controls and indicators

2 buttons and 3 LEDs (multicolor)

KNX programming button with LED (red)

KNX

Medium RF/TP

KNX Security (AES-128) (incl. Security Proxy)

KNX Segment Coupler

Extended filter table

for main group 0 … 31

Buffer: 2 x 20 telegrams

KNX Long Frames

Power Supply

KNX Bus approx. 10 mA

Connectors

Connector for KNX Bus (red / black)

Internal antenna

RF Interface

KNX RF, ISM Band 868,3 MHz, FSK

Output power: 6 dBm
