KNX roller shutter/venetian blind actuator that allows you to control the movement of sun protection products such as horizontal blinds

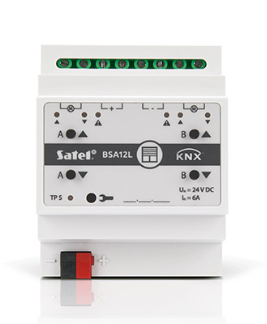

SATEL KNX-BSA12L KNX roller shutter/venetian blind actuator that allows you to control the movement of sun protection products such as horizontal blinds

MT Code: SAT_KNX-BSA12L
Manufacturer Code: KNX-BSA12L
Brand: SATEL

Description

KNX roller shutter/venetian blind actuator that allows you to control the movement of sun protection products such as horizontal blinds (Venetian blinds), vertical blinds, roller shutters and awnings. Suitable for controlling two devices equipped with a 24 V DC motor

KNX-BSA12L is a KNX roller shutter / roller shutter actuator that allows you to control the movement of sun protection products such as horizontal roller shutters (Venetian blinds), vertical roller shutters, shutters and awnings. It also allows the movement control of electrically operated windows.

The KNX-BSA12L module is designed to control devices with a 24V DC motor. The module has 2 physical outputs with two corresponding logical channels. Each channel allows control of a selected type of blind/shutter or window.

Characteristics:
communication with the KNX bus via integrated bus connector
feedback information on the status of the module and individual channels
Selectable type of curtain/shutter for each channel
automatic detection of shutter/shutter movement time and slat adjustment time
weather alarms (rain, wind, frost)
position forcing function
ability to recall scenes for each channel using 1 8 bit commands
blind/shutter error detection (no power, wrong position, mechanical jamming, motor overheating)
manual control of the stroke of roller shutters / roller shutters using the buttons on the case
LED to indicate the status of each channel/curtain/shutter
module configuration using the ETS program
mounted in distribution boxes, on DIN rail (35 mm)
