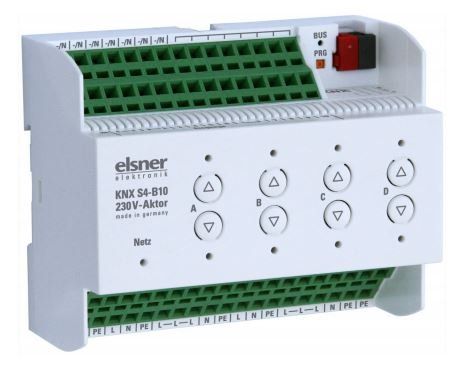

ELSNER 70137 KNX S4-B10

MT Code: ELS_70137
Manufacturer Code: 70137
Brand: ELSNER

The KNX S4-B10 230 V actuator with integrated suspended roller shutter control (facade management) has 4 multifunctional outputs, 4 pairs of buttons

and control LEDs. Each of the four multifunctional outlets can be connected to an Up/Down control (shutters, awnings, roller shutters, windows)

or two switchable devices (On/Off for lights and ventilation).

The connected controls

can be managed directly on the KNX S4-B10 230 V

and by means of a manual switch.

The automatism can be set internally or externally. Numerous internal options are available for locking, interlocking (e.g. Master-Slave) and priority definitions (e.g. Manu-Auto). The scenarios can be saved and recalled from the bus (scenario management with 16 scenarios

on command).

Ten binary inputs can be used for direct operation (e.g. manual switch

) or as a bus button (e.g. also for alarm messages, etc.). The

desired action can be precisely determined using the response time options in Standard, Comfort or 'man present' mode.

Technical sheet

Data Sheet
