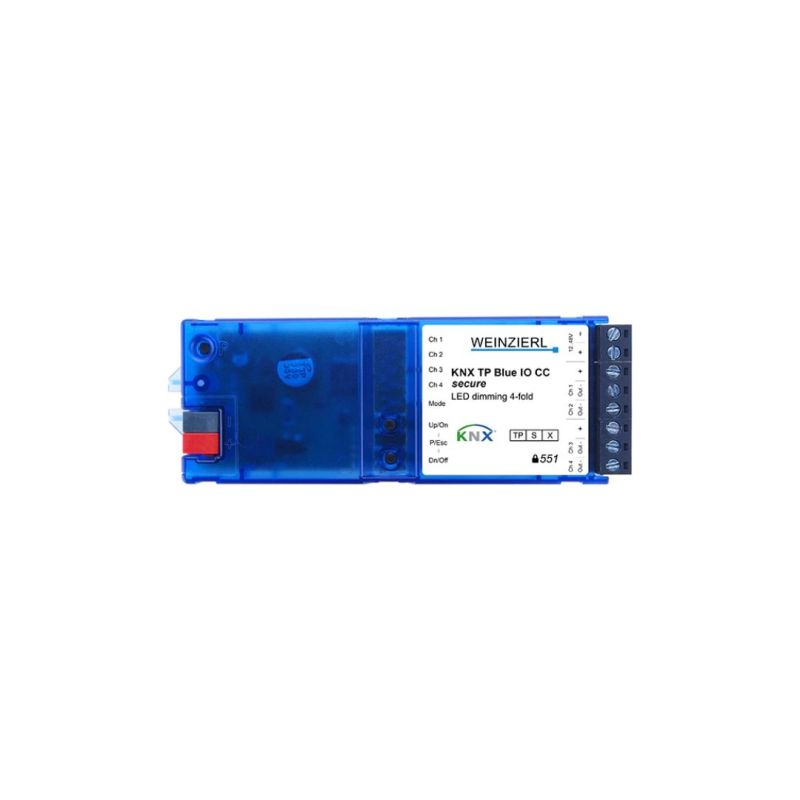

WEINZIERL 5378 KNX TP BLUE IO 551 CC SECURE
- MT Code
- WNZ_5378
- Manufacturer Code
- 5378
- Brand
- WEINZIERL
The KNX TP Blue IO 551 CC secure is a compact RGB / RGBW / Tunable White dimming actuator with 4 constant current dimming outputs.
The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent dimmer channels. Every configuration allows controlling the channel by switching, rel. dimming and dimming value.
Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer.
Two push buttons and five LEDs allow a local operation and a visualization of the device state.
In addition to the output channels the device includes 16 independent functions for logic or timer control.
The device supports KNX Data Security.
TECHNICAL DATA:
Mechanical data
Housing: Transparent plastic
Dimensions: 132 x 46 x 20 mm
Weight: approx. 75 g
Controls and indicators
2 buttons and 5 LEDs (multicolor)
KNX programming button with LED (red)
Connectors
Connector for KNX Bus (red / black)
Pluggable screw connector (2 poles) for power supply
Pluggable screw connectors (3 poles) for dimming channels 1/2 and 3/4
Cross-section of connectors: 1.5 … 2.5 mm²
Power supply
KNX bus approx. 5 mA
Output (dimming actuator)
Dimmer for LEDs with constant current input
Supply voltage: 12 … 48 V⎓
Max. output voltage < Supply voltage
Max. configurable load current: 500 mA each channel (channels can be bundled)
Max. Pout: 96 W
