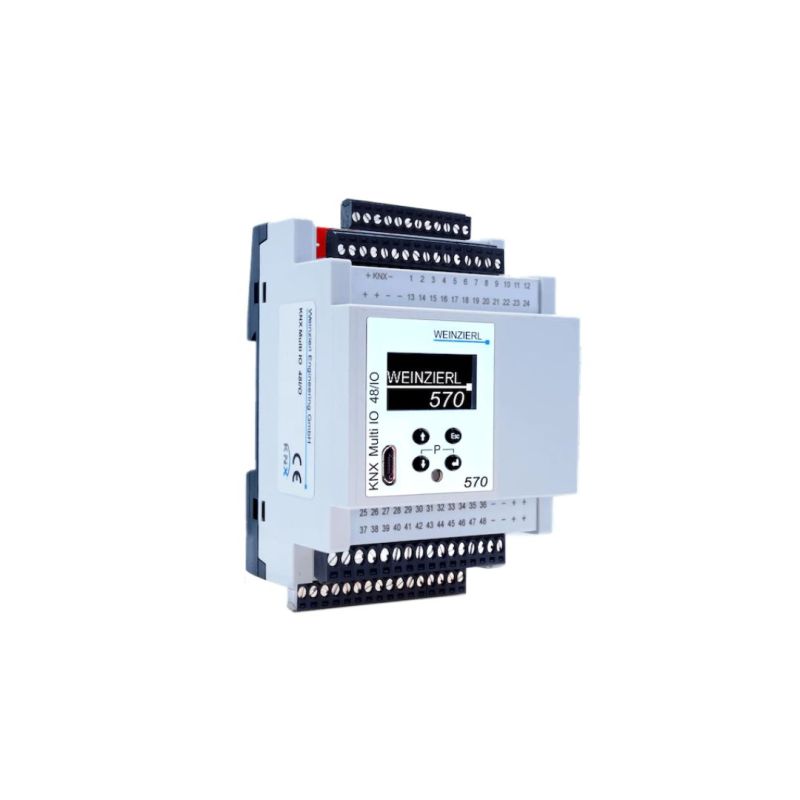

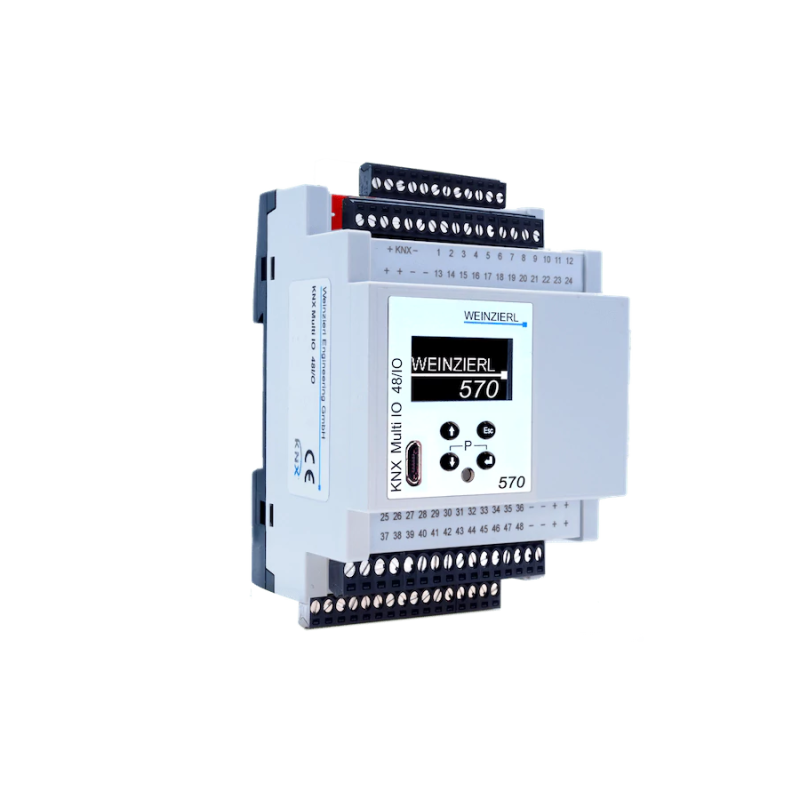

WEINZIERL 5267 KNX TP MULTI IO 570

The KNX TP Multi IO 570 (48I/O) is a universal binary interface for building control. It provides 48 I/O lines. Each line can be used as binary input as well as binary output. The peripherals can be fed by an external voltage of 24 V⎓. Channels which are configured as inputs can be used to control lights or blinds via the KNX network. They also can be used to count impulses, e.g. as interface for energy meters. Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (e.g. Multi IO Extension Switch 590) or jalousie relays (Multi IO Extension Switch 592).

The integrated USB interface allows establishing a bidirectional connection between a PC and the KNX bus. The USB connector has a galvanic separation from the KNX bus. Both ETS (Version 4.2 or later) and visualization tools support this interface. The configuration of the device is done with ETS, a local download is possible. An easy to read OLED display on the front panel enables a manual operation to test the installation.

TECHNICAL DATA:

 Mechanical data

Housing: plastic

DIN rail mounted device, width: 4 modules (72 mm)

Weigth: approx 200 g

Controls and indicators

LED display with four buttons

KNX programming LED

Power Supply

KNX Bus approx. 6 mA

Power Supply for I/O lines: 24 V⎓, ca. 25 mA with no load

KNX

Medium TP

Long Frame

Device model: System B

Compatible with ETS 4.2 (or higher)

Connectors

Connector for KNX Bus (red / black)

Pluggable screw connector (4 poles) for power supply

Pluggable screw connector (12 poles) for I/O lines

Connector for USB 2.0 Micro-B

I/O lines

Output: Open-Drain, max. 100 mA, incl. flyback diode

Input: Incl. pull-up resistor
