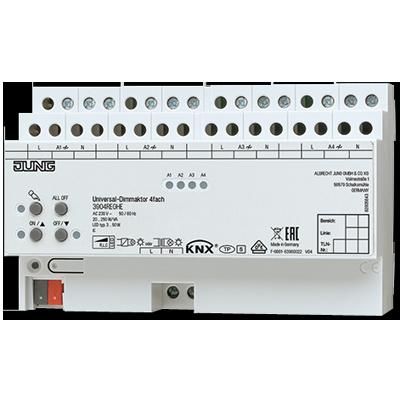

JUNG 3904REGHE KNX universal dimmer actuator - 4 x 250W

Switching and dimming of incandescent lamps, high-voltage halogen lamps, dimmable high-voltage LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with low-voltage halogen lamps or low-voltage LED lamps, dimmable electronic transformers with low voltage halogen lamps or low voltage LED lamps DIN rail mounting according to EN 60715 in distribution boxes

PRODUCT FEATURES
