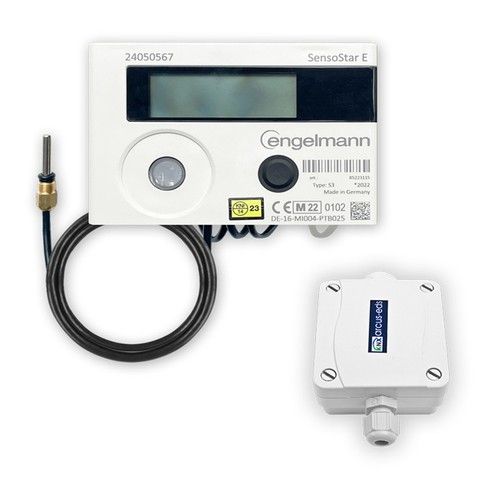

ARCUS-EDS 6041-85223125 KNX WZ heat meter dialog box

ARCUS-EDS 6041-85223125 Product Description

The ARCUS-EDS 6041-85223125 heat meter is a compact device designed for the detection of thermal energy in closed heating systems. This instrument is ideal for applications where accurate and reliable heat flow measurement is required.

Technical characteristics

• Supply Voltage: The supply voltage of the KNX module is between 21 and 32 VDC.
• Power Consumption: The power consumption is about 240 mW at 24 VDC.
• Connection to the KNX Bus: The device is equipped with an integrated bus coupler and a 2-pin KNX terminal (red and black).
• Operating and Storage Temperature: The operating temperature of the KNX module is between 0 and +55 °C, while the storage temperature is between -20 and +60 °C.

Meter Specifications

• Nominal Diameter (DN): The meter has a nominal diameter of 1 inch.
• Minimum Flow: The minimum measurable flow is 2.5 m³/h.
• AG connection: The AG connection is made with a 1/2 inch thread and has a length of 130 mm.
• Temperature Probe: The temperature probe is of the PT1000 2-wire type with a cable length of 1.5 m.

Applications

The ARCUS-EDS 6041-85223125 heat meter is used in heating systems to detect transferred heat energy. It is particularly suitable for installations where a precise and continuous measurement of heat flow is necessary, ensuring optimal efficiency and control of the heating system.
