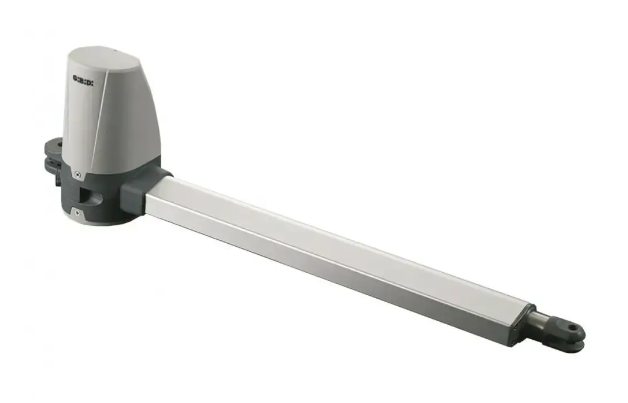

GIBIDI 22000/SX KUDA 200 24 V - SX Linear Irreversible Hinged Gate Operator
- MT Code
- GBD_22000/SX
- Manufacturer Code
- 22000/SX
- Brand
- GIBIDI
Description
24Vdc electromechanical operator with encoder, dedicated to small size and weight swing gates. Suitable for residential use.
EASY TO INSTALL
Thanks to the adjustable brackets without the need for welding. The control unit offers the function of complete self-learning
. QUIET AND FAST
Made with steel, bronze-aluminum gears and special polymers. Thanks to this combination, a high and adjustable speed of movement can be managed.
TECHNOLOGICAL AND SAFE
Latest generation encoder. Thanks to the GIBIDI control units with integrated anti-crush sensitivity adjustment function, the highest level of safety can be reached, as required by
EN 12453. DESIGN
The most compact in its category with a tapered and discreet design that adapts to any
type of gate. ANTI BLACK-OUT
Thanks to the practical kit of optional batteries, it is able to ensure the functionality of the gate even in the event of
a blackout. Use: RESIDENTIAL
Frequency of use: INTENSIVE
Motor supply: 24 Vdc
Absorbed power: 100W Degree of protection:
IP44 Rod speed:
20 mm/s Max. rod stroke:
400 mm Max.
thrust force: 1500 N Force adjustment: ELECTRONIC Speed adjustment: YES ** Max. leaf length:
2.5 m * Operating temperature:
-20°C +60°C Encoder/End of stroke:
ENCODER Lubrication:
GBD WH-01 GREASE
Operator weight: 5 Kg
Data Sheet
| Codice Produttore | 22000/SX |
|---|---|
| Brand | GIBIDI |
