TECNOCONTROL LA312SA Lamp stroboscopic ATEX - 230V - steam

MT Code: TCC_LA312SA
Manufacturer Code: LA312SA
Brand: TECNOCONTROL

Description

Lamp stroboscopic ATEX - 230V - steam

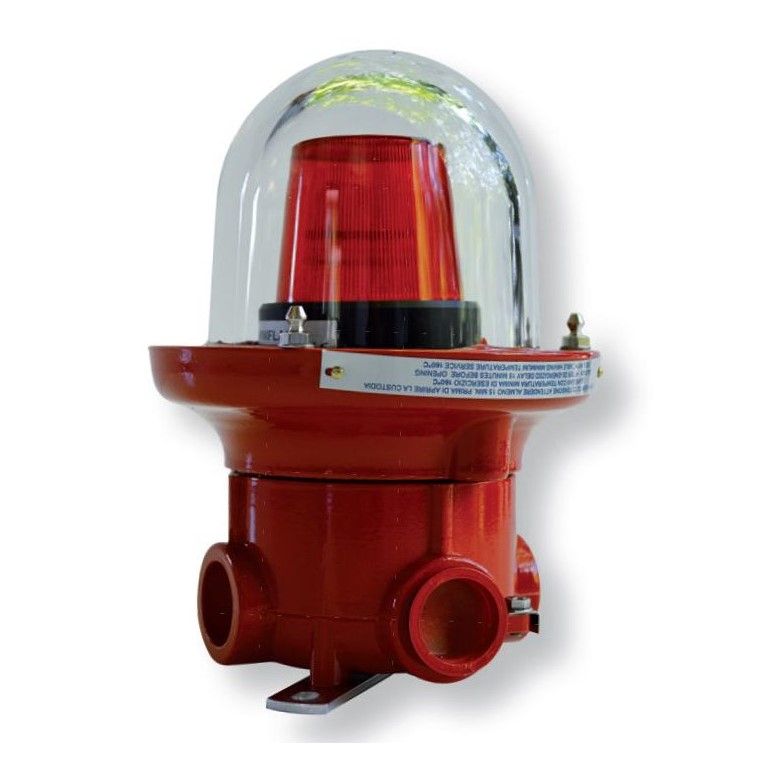

This small-sized luminous signal in a flameproof case is suitable for signaling alarms classified as zones 1 and 2, for ceiling installation and already equipped with a derivation box for the electrical connection. It is equipped with an alloxenon lamp, with optical results increased in relation to consumption, with stroboscopic lighting through a microprocessor. Il gruppo ottico belimanante è fornito di attacco E 27 per una rapide replacement ed utiliza un globo in vetro temperato resistente agli sbalzi termici.

2 threads Ø ¾” ISO 7/1 – NPT
Protective cage in AISI 304 (optional)
Degree of anti-deflagration protection: - II 2G Ex d IIC T6 Gb - Ex tD IIIC IP 65 T 85°C Db
Degree of protection: IP65

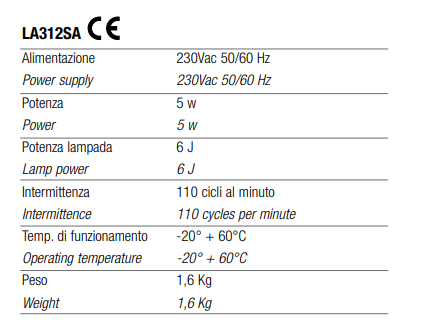

Data Sheet
