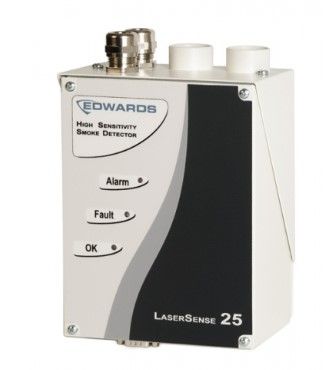

ARITECH FIRE FHSD8025-10 LaserSense 25 - 1-channel/1-zone aspiration smoke detector with analysis chamber equipped with laser technology

LaserSense 25 - 1-channel/1-zone aspiration smoke detector with analysis chamber equipped with laser technology. Management of 1 channel with 27mm diameter tubing. Maximum duct length of 50 meters with a maximum coverage of 750 square meters. for a maximum number of 10 holes. Information display using LEDs. External 24Vcc power supply. Equipped with a module for RS-485 networking. CPR EN54-20 Class A. B and C Certification

Description
LaserSense 25 is developed to provide an efficient, high-sensitivity smoke detection system in a small, easy-to-install container.
The ClassiFire Perceptive Artificial Intelligence function ensures that the detector always operates at the optimum sensitivity for the conditions in the environment to be protected without the need for complex settings. The device will adapt autonomously and automatically to always ensure optimal sensitivity both at the highest level, for example in CED, or reducing it in areas with the presence of smoke.
The detector is designed for attachment using a support structure. Sample tubes and wiring are connected to the support structure in order to allow the installation of the detector only in the final phase of installation, preserving the detector itself from damage during the initial work phases.

The interface to the central detector or to a BMS system is guaranteed through the use of alarm and fault relay outputs.

Typical applications

•

Data Processing Center • Prisons • Plant rooms • Air conditioning units • Rack cabinets • Computer rooms • Air duct protection • Artistic asset protection • Critical electronic devices • Increased protection against smoke • Engine rooms Available options •

Command Module available

for central monitoring and visualizations •
Compatible with the SenseNet network - up to 127 detectors per loop • Unit available Remote Display

• Compatible with MatrixScan, a registered software system capable of providing virtual address locations - e.g. 10 real detectors capable of guaranteeing up to 45 unique address locations.
