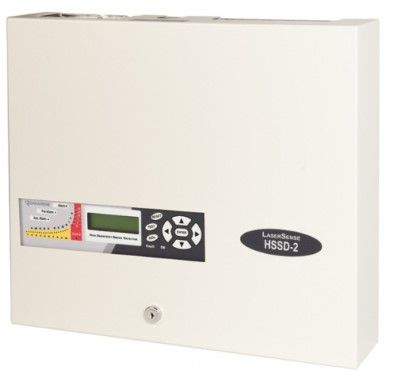

ARITECH FIRE FHSD8200-10 LaserSense HSSD2 - 4-channel/1-zone aspiration smoke detector with analysis chamber equipped with laser technology

LaserSense HSSD2 - 4-channel/1-zone aspiration smoke detector with analysis chamber equipped with laser technology. Management of 4 channels with 27mm diameter tubing. Maximum length of the 4 sample tubes of 200 with a maximum coverage of 1600 square meters. for a maximum number of 100 holes. Information display via LCD display and graphic bar. External 24Vcc power supply. Equipped with a module for RS-485 networking. CPR EN54-20 class A. B and C. Maximum limit according

to UNI9795 32 holes.

Description
LaserSense HSSD2 is developed to provide an efficient high-sensitivity smoke detection system, ensuring early warning with bursting fires and effective control for improper alarms.
The ClassiFire Perceptive Artificial Intelligence function ensures that the detector always operates at the optimum sensitivity for the conditions in the environment to be protected without the need for complex settings. The device will adapt autonomously and automatically to always ensure optimal sensitivity both at the highest level, for example in CED, or reducing it in areas with the presence of smoke.

The interface to the central detector or to a BMS system is guaranteed through the use of alarm and fault relay outputs.

Typical applications • Data Processing Center • Prisons • Plant rooms • Air conditioning units • Rack cabinets • Computer rooms • Air duct protection • Artistic asset protection • Critical electronic devices • Increased protection against smoke • Engine rooms Available options •

Command Module available

for centralized visualization and monitoring • SenseNet compatible network - up to 127 detectors per loop

• Remote display unit
• Compatible with MatrixScan, a registered software system capable of providing virtual address locations - e.g. 10 real detectors capable of guaranteeing up to 45 unique address locations.
