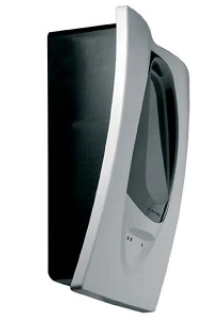

NOTIFIER 6500RE Linear smoke detector. composed of a single

Linear smoke detector. consisting of a single optical unit (TRX) and two reflectors. Protection range between 5 and 70 meters or up to 100 meters with a special reflector. Sensitivity adjustable on six levels with two variables depending on the environment. Automatic gain control to compensate for signal loss due to dust. Easy alignment thanks to the adjustment knobs, the alignment viewfinder and the digital readout of signal strength. Alarm and fault contact. CPR certificate in accordance with EN 54 part 12. Operating voltage 15-32Vcc. Absorption at rest 2mA. in 8.5mA alarm. Operating temperature from -30°C to +55°C. Relative humidity up to 93 percent (without condensation). Degree of protection IP 54.
