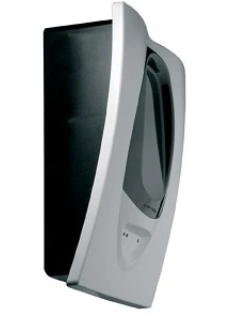

NOTIFIER NFXI-BEAM-40-E 5-40M ADDRESSABLE LINEAR DETECTOR

Linear directed smoke detector, consisting of a single optical unit (TRX) and a reflector to be placed on the opposite side. Protection range between 5 and 40 meters. Sensitivity adjustable on six levels with two variables depending on the environment. Automatic gain control to compensate for signal loss due to dust. Easy alignment thanks to the adjustment knobs, the alignment viewfinder and the digital readout of signal strength. Alarm and fault contact. Thanks to a special integrated interface, the detector can communicate with the control unit and its address is programmed by means of rotating selectors (from 01 to 99). CPR certificate in accordance with EN 54 parts 12 and 17. Operating voltage 15-32Vcc. Absorption at rest 2mA, in alarm 8.5mA. Operating temperature from -30°C to +55°C. Relative humidity up to 93% (without condensation). Degree of protection IP 54.
