NOTIFIER BS70 Linear Smoke Detector with Transmitter Unit

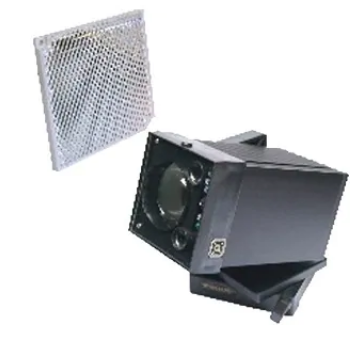

Linear Smoke Detector with Transmitter Receiver unit in a single mechanical body and Reflection unit. Requires INT8C interface to be ordered separately. Protection range between 10 and 70 meters. Adjustable sensitivity as well as the delay time for fault reporting. Automatic gain control to compensate for signal loss due to dust. Easy alignment with portable instrument and LED. It requires a relay interface for alarm and fault. Operating voltage 24Vcc. Absorption at rest 78mA. in 91mA alarm. Operating temperature from -20°C to +60°C. Relative humidity up to 95 percent (without condensation). Degree of protection IP 44. The package includes. Transmitter-Receiving Unit (TRx) and Reflection Unit-Bracket-in die-cast aluminum-4-pole connector complete with cable on Transmitter-Receiver (TRx) unit - Set of diaphragms for operation over short distances. CPD certificate in accordance with EN 54 part 12. CE marking according to CPD No. 0786-CPD-20216.
