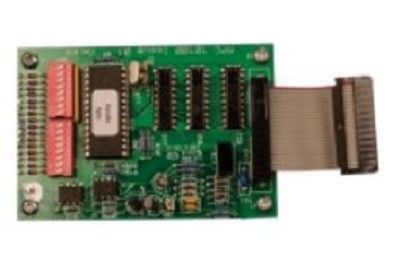

ARITECH FIRE 9-30430 Loop API interface module. 900 series protocol

APIC loop interface module. 900 series protocol. Compatible with Lasersense 10/25/100. HSSD2 and Modulaser display module. Direct installation inside the detection unit. The interface module allows the connection of an aspirated smoke detector or a Modulaser display module to the fire detection loop with protocol 900. Single-address or multi-address mode of operation

Description
The 9-30430 is an interface that can be connected directly to the main control board of any AirSense aspiration detector. The card fits into the main control board inside the detector case. The card allows you to directly address the detector and to communicate with the main fire control unit through the

Connect the terminals
The detectors are wired onto the circuit using plug-in terminals located on the detector's main control board. The detector and the interface are easily managed through the switch settings placed conspicuously on

Single-address and multi-address modes
The Apollo APIC has two distinct operating modes; single address and multiple address. When the interface is set to single address mode, the card appears at a single address on the Apollo loop and the state of the detector is read from that address. The multi-address mode is used when monitoring the status of multiple detectors with consecutive addresses from a single Apollo card. The multi-address mode is normally used only in the command module
